306-014-500-101

Edgeboard Connectors Overview

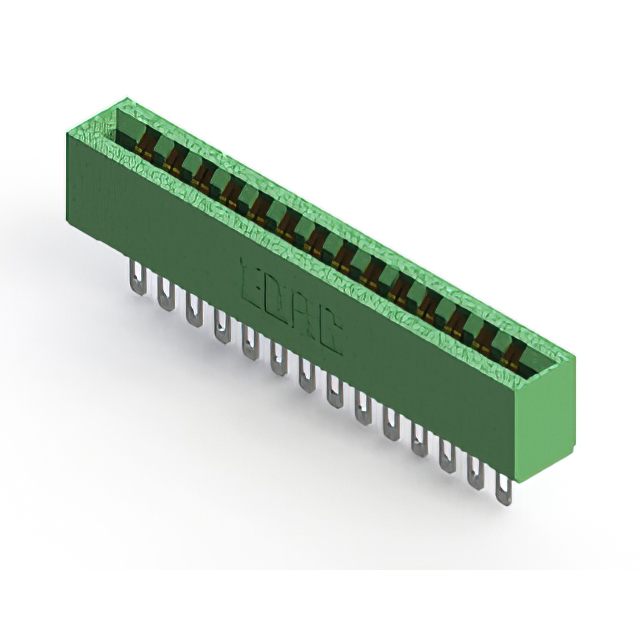

The EDAC Inc. 306-014-500-101 is a standard card edge connector from the 306 series, designed for dual-edge mating applications. It features a female contact configuration with 28 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96mm) pitch and employs cantilever spring contacts made of copper alloy with gold plating. The housing is constructed from green thermoplastic material, providing insulation resistance of 5 GOhms. Rated for operation between -40°C and +105°C, it supports a current rating of 3A per contact. The unit is designed for panel mount installation with vertical orientation and solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating double-sided circuit boards
• Cantilever spring contact mechanism ensuring reliable electrical engagement
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic insulation housing rated for high-temperature environments

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Consumer electronics assemblies needing reliable signal transmission
• Medical devices requiring stable electrical connectivity in constrained spaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thicknesses and mounting configurations. Confirm that the 0.156-inch pitch aligns with the target PCB design specifications. Check for RoHS compliance status if environmental regulations apply to the end product. Ensure the vertical panel mount style matches the mechanical enclosure requirements. Validate the operating temperature range against the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. Consider the 28-position count and two-row arrangement for signal density needs. Evaluate the cantilever contact type for ease of insertion and retention force. Assess the gold plating thickness for durability in repeated mating cycles. Compare the thermal performance against the system's maximum operating conditions.

Edgeboard Connectors Part Context

This part belongs to EDAC's standard card edge connector lineup, specifically the 306 series. It serves as a receptacle for mating with double-sided circuit boards. The design emphasizes reliability in industrial and commercial applications. The connector provides a secure interface for data and power distribution. Its construction supports various mounting styles and termination methods.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other 306 series variants with different position counts or pitch sizes. Verify compatibility with existing PCB footprints before replacement. Cross-reference mechanical dimensions to ensure proper fit within the assembly. Check electrical ratings to confirm adequate performance for the application.
