306-014-500-103

Edgeboard Connectors Overview

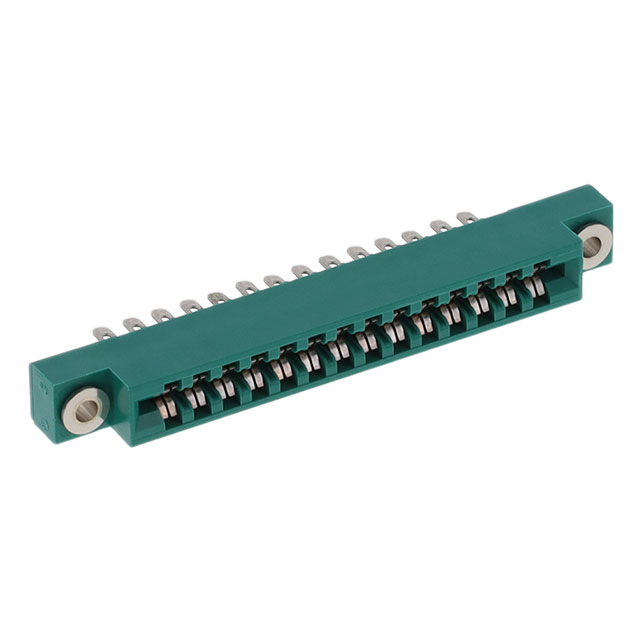

The EDAC 306-014-500-103 is a single-row card edge connector receptacle designed for panel mounting. It features 14 contacts with a 0.156-inch (3.96 mm) spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The unit utilizes a low-profile insulator body and straight orientation for reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for simplified board integration
• Low profile insulator body design to minimize vertical space requirements
• Accepts standard 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Panel mount electronic assemblies requiring single-side card edge interfaces
• Industrial control systems utilizing standard thickness circuit boards
• Communication equipment housing with space-constrained connector layouts

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct contact plating and material specifications. Confirm that the required PCB thickness aligns with the 0.062-inch acceptance criteria. Check lead times as manufacturing schedules may vary. Ensure compatibility with mating card edge profiles before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, panel-mount solution is required for 14-position connections. The 0.156-inch pitch suits applications not requiring high-density routing. Verify that the straight orientation fits the mechanical enclosure constraints. Consider thermal and current ratings if operating in high-load environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series offers various pin counts and configurations for standard PCB thicknesses. It is engineered for durability and consistent electrical performance in demanding industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306-series parts for different pin counts. Verify mechanical dimensions and contact spacing match existing tooling. No direct substitute part numbers are confirmed in public documentation.
