306-014-500-112

Edgeboard Connectors Overview

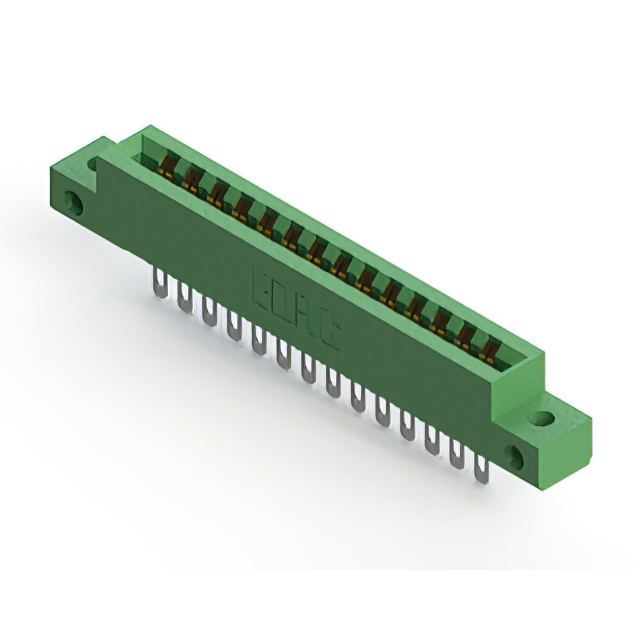

The EDAC Inc. model 306-014-500-112 is a standard card edge connector from the 306 series, designed for dual-edge board insertion. It features 14 positions with a contact spacing of 3.96 mm (0.156 inches). The component supports a maximum operating temperature of +105°C and a minimum of -40°C. Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The housing is constructed from thermoplastic material, while contacts are made of copper alloy with gold plating. It utilizes a panel mount installation style.

Edgeboard Connectors Feature Summary

• Dual-edge card edge connector configuration
• Gold-plated copper alloy contacts
• Thermoplastic housing construction

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies
• Industrial control systems
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and exact dimensional tolerances before integration. Ensure that the mating card edge thickness aligns with the connector's design specifications. Cross-reference the manufacturer's latest documentation to validate environmental ratings and mechanical durability claims against project requirements.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount interface is required for dual-sided circuit boards. The 3.96 mm pitch accommodates higher power applications due to the 5 A rating. Verify compatibility with existing panel cutouts and ensure sufficient clearance for the thermoplastic housing during assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles, providing flexibility for different board densities. The 306 series is characterized by its robust thermoplastic housing and reliable gold-plated contact systems for stable electrical connections.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with identical pitch and position counts but different mounting variations. Verify that any alternative maintains the 3.96 mm spacing and 5 A current rating to ensure functional equivalence without redesigning the panel or board layout.
