306-014-500-178

Edgeboard Connectors Overview

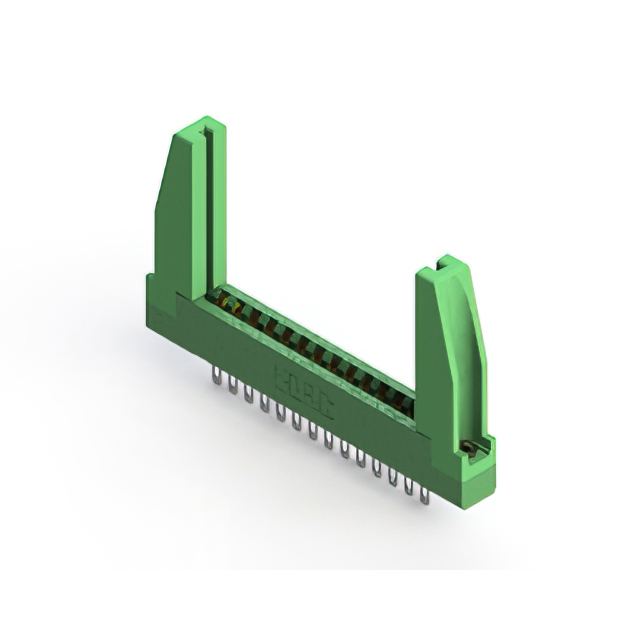

The EDAC Inc. 306-014-500-178 is a standard card edge connector receptacle from the 306 series. It features a dual female configuration with 28 positions and a 3.96 mm (0.156 inch) contact spacing. Designed for single centerline row applications, it accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. It employs a solder eyelet termination type and supports a straight mounting style.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable board insertion
• Low profile insulator body design for space-constrained assemblies
• Gold-plated copper alloy contacts ensure stable electrical performance
• Thermoplastic polyester housing provides structural integrity

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• General-purpose electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm RoHS compliance status through the latest product documentation before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm pitch is required. The straight mounting orientation and solder eyelet termination suit panel or chassis installations. Verify that the 28-position layout aligns with the signal routing requirements of the host system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its robust construction and standardized dimensions. The 306-014 variant specifically denotes the 28-position configuration within this family, maintaining consistent mechanical and electrical standards across the lineup.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes. Verify equivalent parameters such as position count, pitch, and termination method before considering alternative part numbers.
