306-014-520-101

Edgeboard Connectors Overview

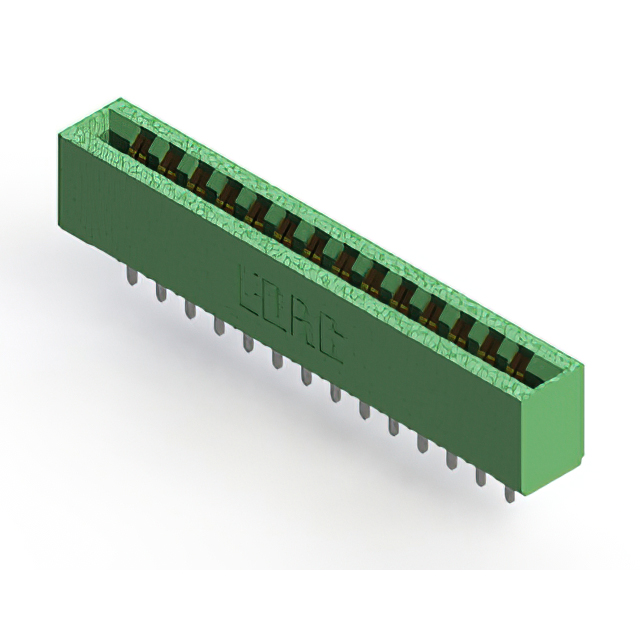

The EDAC Inc. 306-014-520-101 is a standard card edge connector from the 306 series, designed for reliable signal transmission in electronic assemblies. This component features 28 positions with a contact spacing of 0.156 inches (3.96 mm). It utilizes a dual female termination configuration suitable for mating with single-edge PCBs. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts and gold plating, it ensures durable electrical performance. The housing is made of thermoplastic material, providing structural integrity.

Edgeboard Connectors Feature Summary

• Dual female termination design for secure PCB insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount installation style
• Accepts 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Embedded system module connections
• Consumer electronics assembly interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin count and termination type. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the dual female configuration matches the board edge design. Check for RoHS compliance requirements if applicable to the end product. Validate that the vertical panel mount style fits the enclosure constraints.

Edgeboard Connectors Selection Notes

Select this connector when a 28-position interface with 3.96 mm pitch is required. Choose the dual female termination for single-edge board applications. Consider the vertical mounting orientation for panel integration. Evaluate the gold plating for environments requiring oxidation resistance. Compare against other 306 series variants for different position counts.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of card edge connectors, which are engineered for general-purpose electronic applications. The series offers various position counts and termination options to suit different board designs. EDAC manufactures these connectors using high-quality materials to ensure long-term reliability. The 306 series is widely used in industries demanding stable signal transmission.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-reference part numbers. Verify that any substitute maintains the 28-position count and 3.96 mm pitch. Ensure the replacement supports the same PCB thickness and termination style.
