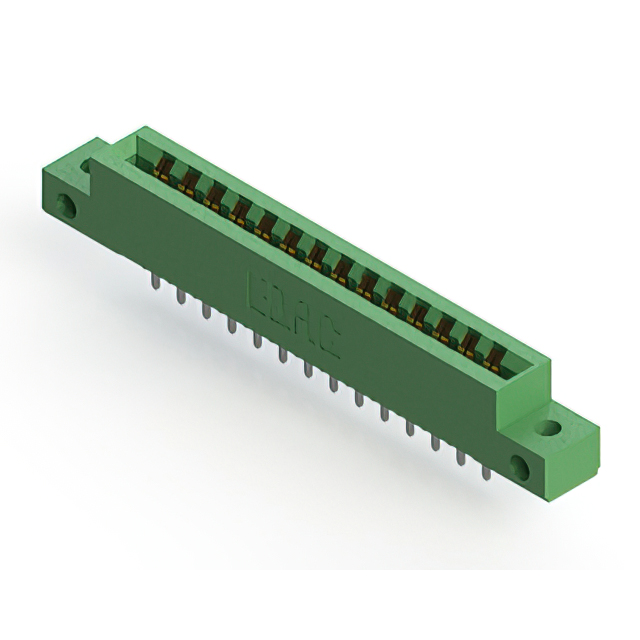

306-014-520-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 28POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-014-520-112
- Description：CONN EDGE DUAL FMALE 28POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：14
- Number of Positions：28
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-014-520-112
Edgeboard Connectors Overview
The EDAC Inc. 306-014-520-112 is a standard card edge connector from the 306 series, designed for dual-edge female termination. It features 28 positions with a 0.156-inch (3.96 mm) pitch and a 0.200-inch (5.08 mm) row spacing. The connector utilizes gold-plated copper alloy contacts housed in a green thermoplastic body. It supports a 5 A current rating and offers an insulation resistance of 5 GOhms. The unit is rated for operation between -40°C and +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for secure board insertion
- Gold-plated contacts ensure reliable signal transmission
- Thermoplastic housing provides structural stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Communication equipment backplanes
- Medical device circuit boards
Edgeboard Connectors Procurement Notes
Verify the specific suffix against official EDAC documentation to confirm plating thickness and material specifications. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or product change notification records.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge interface with a 3.96 mm pitch is required. Verify that the application environment stays within the specified temperature range. Ensure the mating card edge thickness aligns with the connector's design limits for proper retention.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its use of thermoplastic materials and gold-plated copper alloy contacts. It serves as a reliable solution for connecting printed circuit boards in various electronic assemblies.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, position count, and termination style.
