306-014-521-112

Edgeboard Connectors Overview

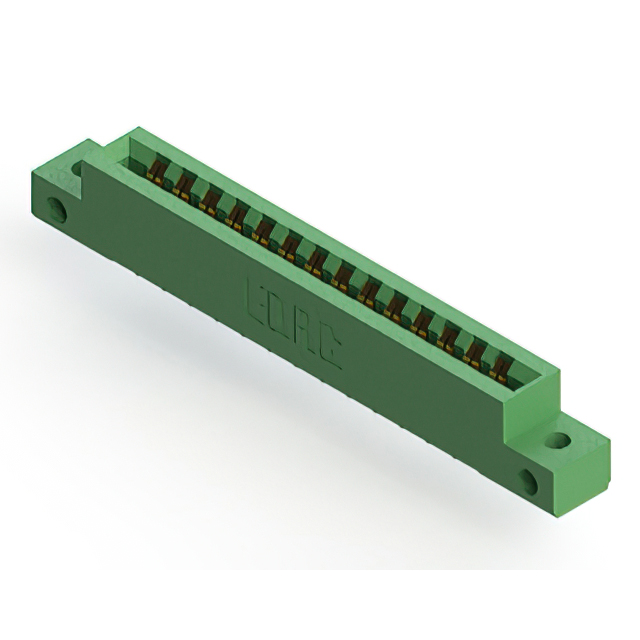

The EDAC Inc. 306-014-521-112 is a standard card edge connector designed for dual-edge board insertion. It features 28 positions arranged in a single row with a 0.156-inch (3.96 mm) contact pitch. The component utilizes gold-plated copper alloy contacts and a green thermoplastic housing. It supports a maximum operating temperature of +105°C and a minimum of -40°C, with an insulation resistance of 5 GOhms. Rated for 5 A current, it employs solder termination for secure panel mounting.

Edgeboard Connectors Feature Summary

• Dual-edge female connector configuration for secure card insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic housing provides structural integrity and insulation
• Solder termination method facilitates robust panel mount installation

Edgeboard Connectors Applications

• Computing and storage system interconnects
• Medical device circuit board connections
• Industrial control panel interfaces
• Aerospace electronic module integration

Edgeboard Connectors Procurement Notes

Verify the specific part number suffix against official EDAC documentation to confirm exact plating thickness, housing color, and termination style. Ensure compatibility with target PCB edge thickness specifications before procurement. Cross-reference manufacturer datasheets for updated RoHS compliance status and environmental testing records. Confirm that the selected variant matches the required current rating and temperature range for the intended application environment.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge card interface with a 0.156-inch pitch is required. Ensure the mating card edge thickness falls within the specified mechanical tolerance for proper retention. Verify that the 5 A current rating meets the electrical load requirements of the circuit. Consider the vertical panel mount orientation and solder termination method during PCB layout design to ensure adequate clearance and thermal management.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which specializes in standard card edge connectors for rack and panel applications. The series offers a wide range of position counts and termination options. EDAC has provided interconnect solutions since 1966, focusing on computing, medical, and industrial sectors. This specific model represents a mid-range position count option within the dual-edge female category.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the source data. Direct replacement requires matching the 28-position count, 0.156-inch pitch, dual-edge female configuration, and panel mount solder termination. Verify mechanical dimensions and electrical ratings against any alternative components.
