306-014-521-168

Edgeboard Connectors Overview

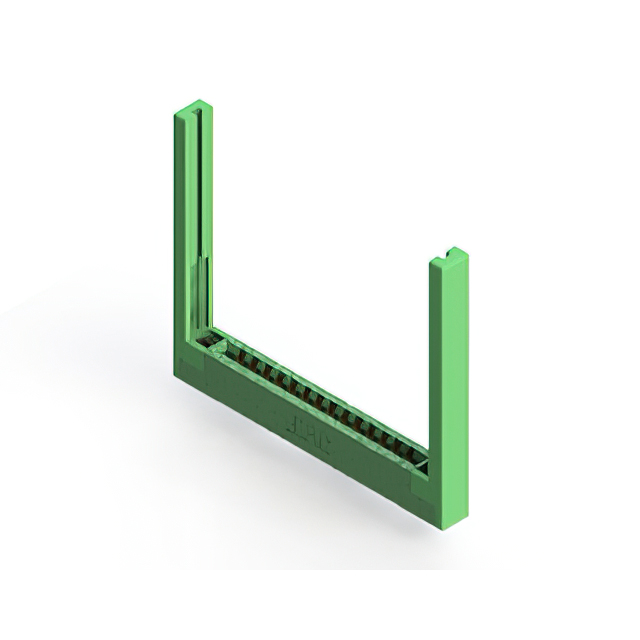

The EDAC Inc. 306-014-521-168 is a dual-edge female card edge connector featuring 28 positions with a 0.156-inch (3.96 mm) contact pitch. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts and a green polyphenylene sulfide (PPS) insulation body. The component supports a maximum operating temperature of +105°C and a minimum of -40°C, accommodating board thicknesses typically around 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for robust signal transmission
• Gold-plated contacts ensure reliable conductivity
• High-temperature PPS insulation material
• Flush mount design with top opening and threaded inserts

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Medical interconnect solutions demanding durable connections
• Agricultural technology equipment in harsh environments
• General-purpose electronic assemblies needing panel-mounted interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your PCB stack-up and mounting requirements. Ensure that the thermal ratings and contact configurations align with your system's operational parameters before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface is required for applications involving moderate current loads and standard board thicknesses. The flush mount style with threaded inserts provides secure mechanical attachment, while the gold plating offers corrosion resistance suitable for various industrial and medical environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by versatile mounting options and high-temperature insulators, designed to support diverse industry needs including communication, consumer electronics, and energy sectors through reliable interconnection solutions.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify that any replacement maintains the same 28-position count, 0.156-inch pitch, and dual-edge female configuration to ensure mechanical and electrical compatibility.
