306-015-400-103

Edgeboard Connectors Overview

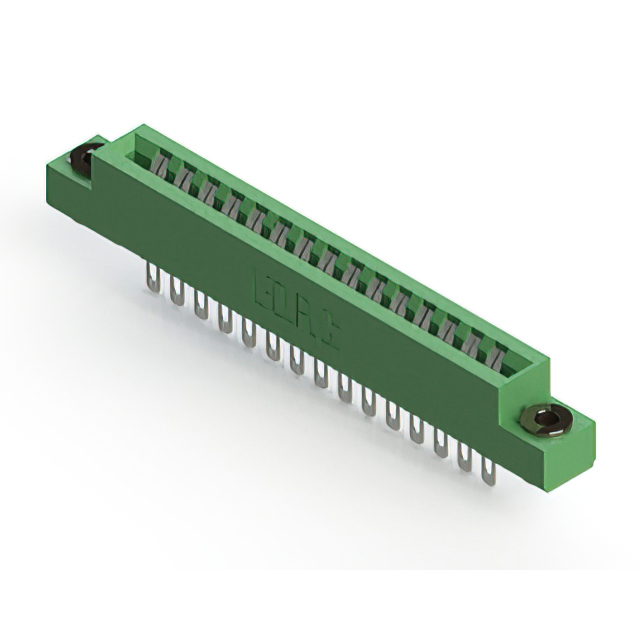

The EDAC Inc. 306-015-400-103 is a dual female card edge connector from the 306 series, designed for panel and through-hole mounting. It features 30 positions with a 0.156-inch (3.96mm) contact spacing. The connector utilizes tin-plated copper alloy contacts and a thermoplastic insulator. It supports board thicknesses of 0.054 to 0.070 inches (1.37mm to 1.78mm) and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female configuration with cantilever contacts for reliable card insertion
• Thermoplastic polyester insulation rated for high-temperature environments
• Panel mount design with flush flange and top opening for secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Communication equipment utilizing standard PCB modules
• Consumer electronics with modular circuit board designs

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to ensure compatibility with required plating and termination styles. Confirm that the selected variant matches the intended board thickness and mounting orientation. Cross-reference the part number with official distributor catalogs to validate availability status and lead times prior to procurement planning.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided female connection is required for standard thickness cards. Ensure the application environment stays within the specified -40°C to +105°C operating range. Verify that the PCB layout accommodates the 0.156-inch pitch and that the panel mounting holes align with the connector's flange specifications for proper mechanical stability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which offers various configurations for card edge applications. The series provides multiple row options, contact terminations, and guide solutions. The 306-015-400-103 specifically addresses needs for 30-position dual female connections with tin plating, fitting into broader industrial and commercial interconnect portfolios.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with identical pin counts and spacing. Alternative parts must match the 0.156-inch pitch and dual female contact type. Verify that any replacement maintains the same thermal rating and mounting style requirements.
