306-015-400-107

Edgeboard Connectors Overview

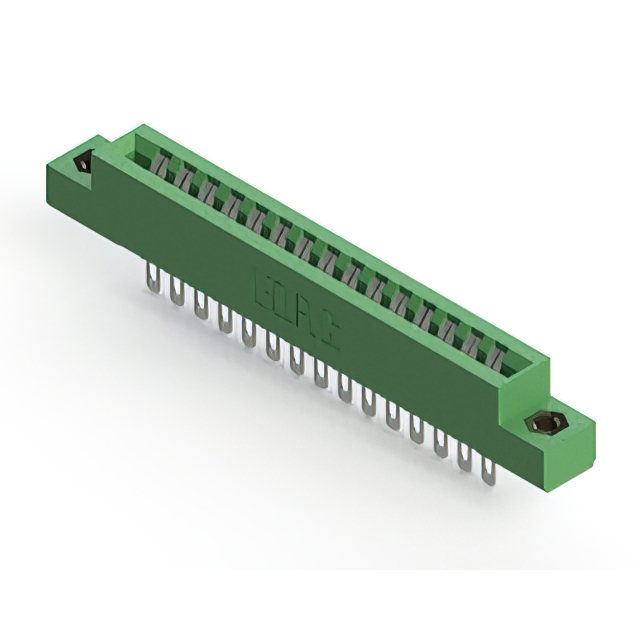

The EDAC Inc. 306-015-400-107 is a standard card edge connector from the 306 series, designed for reliable signal transmission in electronic assemblies. This receptacle features 15 positions with a pitch of 3.96 mm and supports a board thickness of 1.57 mm. It utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. The component is rated for 5 A current and offers high insulation resistance. Constructed with a thermoplastic polyester housing, it provides robust mechanical stability. The vertical panel mount style facilitates secure integration into systems requiring direct board insertion.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance.
• Thermoplastic polyester housing ensures mechanical strength and thermal stability.
• Vertical panel mount design allows for secure installation and direct board insertion.

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment
• Consumer electronics

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm pin count, plating, and mounting style. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the 15-position configuration matches the circuit requirements. Check for RoHS compliance status if required by project specifications. Validate availability through authorized distributors as supply chains may vary.

Edgeboard Connectors Selection Notes

Select this connector when a 15-position card edge interface is required with a 3.96 mm pitch. The 5 A current rating suits moderate power applications. The vertical orientation is ideal for panel-mounted receptacles. Ensure the mating card edge thickness aligns with the 1.57 mm specification. Gold plating is necessary for environments requiring long-term reliability without oxidation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic needs. The 306 series is known for its versatility in industrial and commercial applications. Similar parts in the series differ primarily in position count and specific mounting variations. This model represents a mid-range option within the broader product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series connectors with matching 15 positions and 3.96 mm pitch. Verify that alternative part numbers maintain the same vertical panel mount style and gold plating. Cross-reference with competitors offering identical 1.57 mm board thickness support. Ensure current ratings and insulation properties meet or exceed original specifications.
