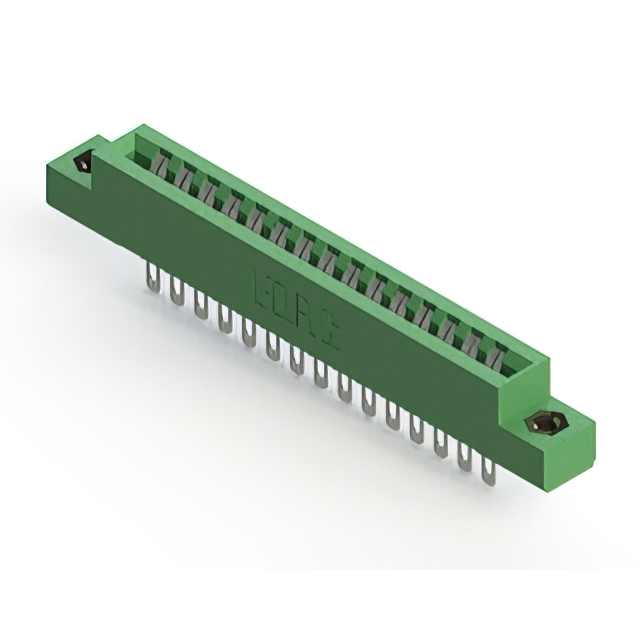

306-015-400-108

$10.04

Description：CONN EDGE DUAL FMALE 30POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:63d6c92ef732 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-015-400-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-015-400-108

Description：CONN EDGE DUAL FMALE 30POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：15
Number of Positions：30
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-015-400-108

306-015-400-108

Edgeboard Connectors Overview

The EDAC Inc. part number 306-015-400-108 is a standard card edge connector receptacle belonging to the 306 series. It features 30 positions with a contact spacing of 0.156 inches (3.96 mm). The connector is designed for dual female termination and supports a board thickness of 1.57 mm. It utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator. The unit employs solder pin end-type connections and is configured for vertical panel mount installation.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure card edge engagement
Gold-plated copper alloy terminals ensure reliable signal transmission
Thermoplastic polyester housing provides thermal stability
Vertical panel mount design facilitates structured integration

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronic module interfaces
Medical device circuit board assemblies

Edgeboard Connectors Procurement Notes

Verify the exact manufacturer part number against official EDAC documentation before procurement. Confirm that the specific suffix matches the required termination style and mounting configuration. Ensure compatibility with the target PCB thickness and row count. Cross-reference the RoHS compliance status with current regulatory requirements. Validate that the supplier provides genuine components with traceable origin records.

Edgeboard Connectors Selection Notes

Select this component when a 30-position interface with 3.96 mm pitch is required. Choose the vertical orientation for direct panel insertion. Consider the solder pin termination for through-hole assembly processes. Evaluate the dual-row layout against available board space constraints. Assess the gold plating requirement for corrosion resistance in the operating environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and mounting options. It serves as a foundational component for modular electronic systems requiring robust mechanical retention and electrical continuity between daughterboards and motherboards.
