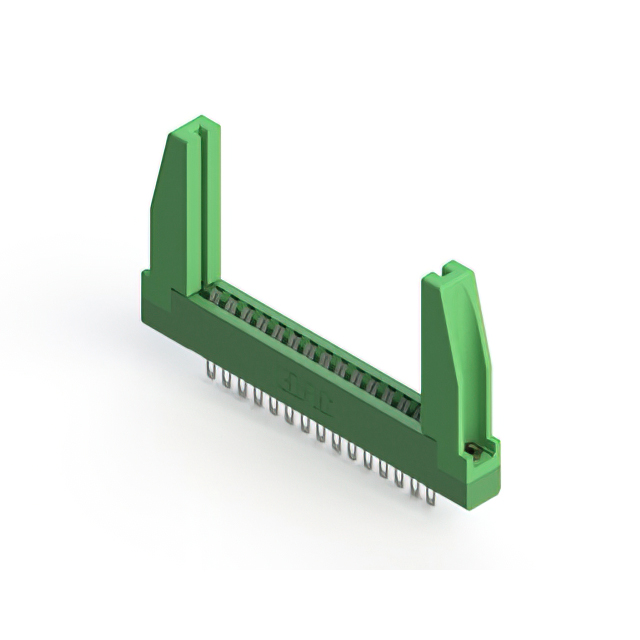

306-015-400-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-400-178
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-400-178
Edgeboard Connectors Overview
The EDAC Inc. 306-015-400-178 is a standard card edge connector receptacle from the 306 Series, designed for through-hole mounting. It features 15 positions with a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are gold-plated copper alloy with a current rating of 5 A. The insulator body is made of thermoplastic polyester, providing a low-profile design suitable for straight installation angles.
Edgeboard Connectors Feature Summary
- Accepts nominal 1.57 mm thick PCBs
- Gold-plated copper alloy contacts
- Low profile thermoplastic polyester insulator
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment
- Medical devices
Edgeboard Connectors Procurement Notes
Verify the specific suffix code against official EDAC documentation to confirm exact plating thickness and flange configuration. Ensure compatibility with the target PCB thickness range and required current load before procurement. Confirm RoHS compliance status via the latest manufacturer datasheet.
Edgeboard Connectors Selection Notes
Select this component when a 15-position dual-sided connection is required with a 3.96 mm pitch. Consider the 5 A current rating and -40°C to 105°C operating temperature range for environmental suitability. Verify that the through-hole termination method aligns with the assembly process.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which offers various configurations for card edge applications. The series provides options for different position counts and board thicknesses while maintaining consistent 3.96 mm spacing. The 306-015-400-178 specifically addresses needs for moderate density connections in constrained spaces.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 306 Series parts for alternative position counts or board thicknesses. Verify mechanical fit and electrical ratings against direct substitutes from other manufacturers if necessary.
