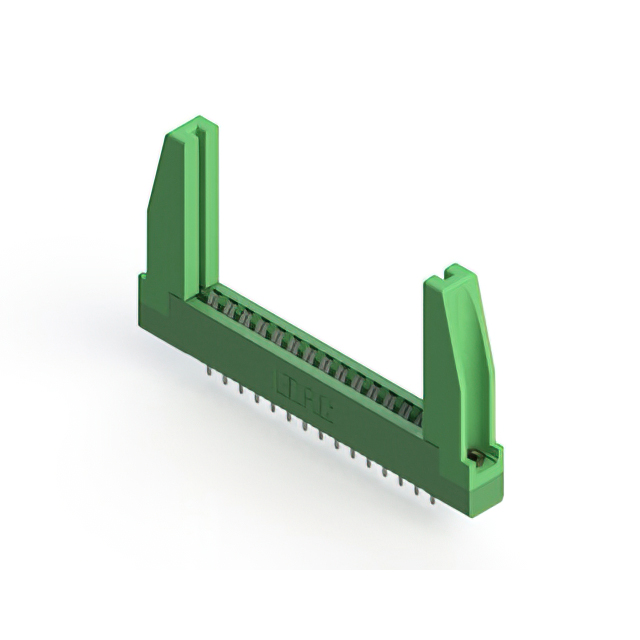

306-015-420-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-420-178
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-420-178
Edgeboard Connectors Overview
The EDAC Inc. 306-015-420-178 is a standard card edge connector from the 306 series, designed for dual-edge female applications. It features 30 positions with a 3.96 mm (0.156 inch) pitch and accepts board thicknesses between 1.37 mm and 1.78 mm. The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for 5 A current, it supports through-hole solder termination and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for secure board insertion
- Through-hole solder termination for reliable PCB mounting
- Thermoplastic polyester insulator for thermal stability
Edgeboard Connectors Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific contact plating finish against project requirements, as distributor listings may indicate either gold or tin variants for this part number. Confirm that the supplier provides official EDAC documentation matching the exact suffix. Ensure the procurement channel is authorized to guarantee component authenticity and traceability.
Edgeboard Connectors Selection Notes
Select this model when a dual-edge female connector with a 3.96 mm pitch is required. Verify compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Ensure the application environment remains within the specified -40°C to +105°C operating temperature limits.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 Series, which offers various mounting styles and contact configurations. The 306-015-420-178 specifically denotes a 30-position dual-edge receptacle. This series is engineered for high-reliability connections in demanding electronic environments.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 306 series parts sharing the same pitch and position count. Verify mechanical dimensions and terminal type before substituting.
