306-015-421-101

Edgeboard Connectors Overview

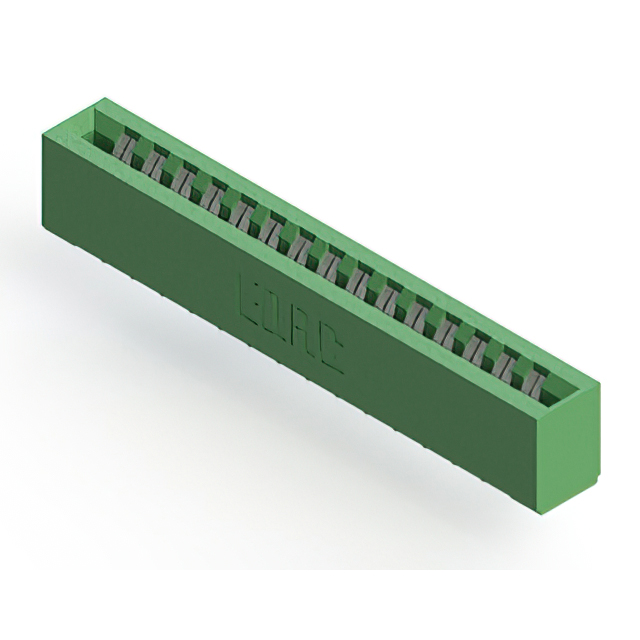

The EDAC Inc. 306-015-421-101 is a standard card edge connector from the 306 series, designed for dual-edge board insertion. It features 30 positions with a 3.96 mm (0.156 inch) pitch and accepts PCB thicknesses between 1.37 mm and 1.78 mm. The connector utilizes copper alloy contacts with tin plating and a green thermoplastic polyester housing. Rated for 5 A current, it employs vertical panel mount installation with solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Vertical panel mount design with flush mounting flange
• Copper alloy contacts with tin surface finish for reliable conductivity

Edgeboard Connectors Applications

• Industrial control system backplanes
• Test and measurement equipment interfaces
• Telecommunications hardware modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and housing color variants, as these attributes may differ across sub-models within the same series. Ensure that the selected variant matches the required environmental compliance standards, such as RoHS or REACH, for the intended deployment region. Cross-reference the mechanical drawing dimensions against the target chassis specifications to guarantee proper fitment during assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with a 3.96 mm pitch is required for dual-sided card edges. The vertical orientation and panel mount style are suitable for applications requiring direct chassis integration. Consider the tin-plated contacts for cost-effective solutions where high corrosion resistance is not the primary constraint compared to gold-plated alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of edgeboard connectors, which are engineered for robust performance in demanding environments. The series offers various position counts and mounting options, providing flexibility for diverse electronic enclosure designs. The 306-015-421-101 specifically addresses needs for medium-density connections with standardized spacing.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series parts with matching 30-position counts and 3.96 mm pitch, such as 306-015-421-104 if tin plating is confirmed. Verify that any alternative maintains the same dual-edge female configuration and vertical panel mount form factor to ensure mechanical compatibility.
