306-015-421-168

Edgeboard Connectors Overview

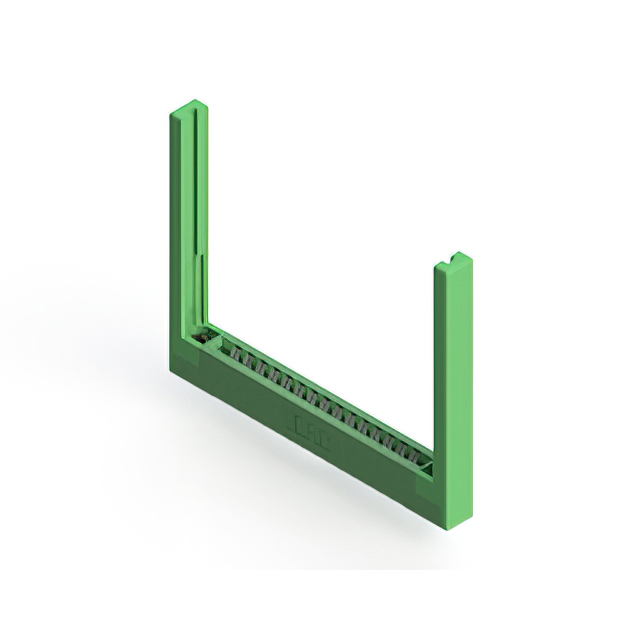

The EDAC Inc. 306-015-421-168 is a standard card edge connector from the 306 series, designed for through-hole mounting. It features a dual female configuration with 30 positions arranged in two rows of 15 contacts each. The connector utilizes a 0.156-inch (3.96 mm) pitch and accepts board thicknesses between 0.054 inches and 0.070 inches (1.37 mm to 1.78 mm). Contacts are made of copper alloy with tin plating, housed in green thermoplastic polyester insulation. It operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Through-hole solder termination for reliable PCB attachment
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics mainboard connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 30-position dual-edge specification. Confirm that the tin-plated contacts meet the environmental requirements for the intended application. Ensure the through-hole mounting style aligns with the target printed circuit board layout and assembly processes before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required. The tin-plated contacts offer a cost-effective solution compared to gold plating. Verify compatibility with the target board thickness range of 1.37 mm to 1.78 mm. Consider the operating temperature range of -40°C to +105°C for environmental suitability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which provides standard card edge connectors for various industrial and commercial applications. The series offers multiple position counts and mounting styles. The 306-015-421-168 specifically addresses needs for dual-edge connections with through-hole termination, providing a robust interface for signal and power distribution in electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series parts with identical 30-position dual-edge specifications. Verify pin count, pitch, and termination method match exactly. Cross-reference with manufacturer ordering guides for equivalent configurations.
