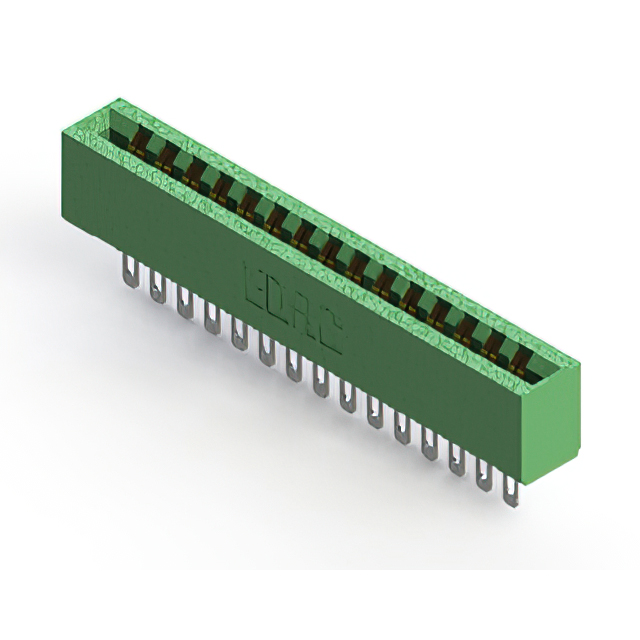

306-015-500-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-500-101
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-500-101
Edgeboard Connectors Overview
The EDAC Inc. model 306-015-500-101 is a standard card edge connector receptacle designed for dual-edge board insertion. It features 30 positions with a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The unit utilizes gold-plated copper alloy contacts and thermoplastic polyester housing, rated for 5 A current. It employs through-hole solder termination and offers straight mounting orientation.
Edgeboard Connectors Feature Summary
- Dual-edge female connector design for secure board retention
- Gold-plated contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- High-density circuit board assemblies
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, housing color, and mounting variations. Ensure compatibility with target PCB thickness and row configuration before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.
Edgeboard Connectors Selection Notes
Select this component when dual-edge mating is required with a 3.96 mm pitch. Confirm that the 5 A current rating meets circuit demands. Verify that the straight through-hole mounting style aligns with the mechanical assembly constraints and panel layout requirements.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options. The 306-015-500-101 specifically addresses applications requiring 30-position dual-edge connectivity with robust solder termination.
Edgeboard Connectors Replacement Considerations
Direct substitutes include EDAC 306-015-520-178 for single-edge variants or other 306-series parts with matching pitch. Verify mechanical dimensions and electrical ratings before substitution.
