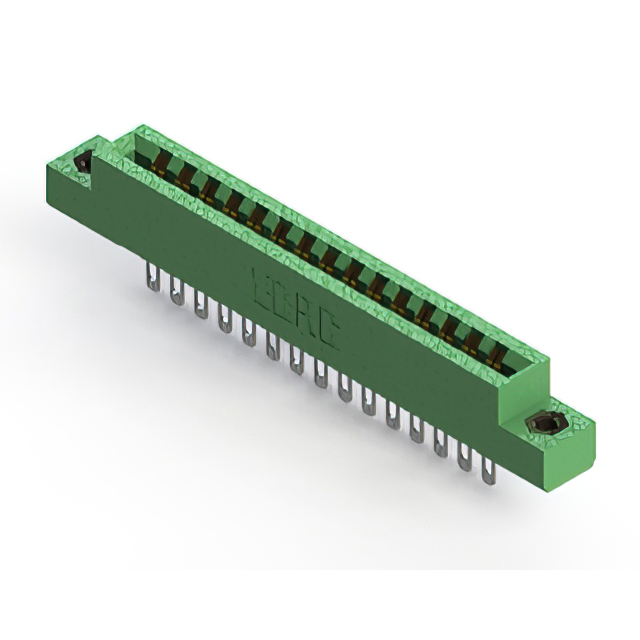

306-015-500-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-500-107
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-500-107
Edgeboard Connectors Overview
The EDAC Inc. 306-015-500-107 is a standard card edge connector receptacle featuring 30 positions with a 3.96 mm pitch. Designed for dual-edge board insertion, it utilizes gold-plated copper alloy contacts rated for 5 A current. The component employs a thermoplastic polyester housing and supports through-hole solder termination. It accommodates PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board retention
- Gold-plated nickel phosphor bronze contacts for corrosion resistance
- Thermoplastic polyester insulator for high-temperature stability
Edgeboard Connectors Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- Medical device circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the exact position count against specific project requirements, as datasheet references vary between 15 and 30 positions for this series prefix. Confirm RoHS compliance status directly with the manufacturer prior to final procurement decisions. Ensure the ordering suffix matches the required termination style and mounting hardware specifications.
Edgeboard Connectors Selection Notes
Select this component when a 3.96 mm pitch dual-edge connector is required for vertical panel or chassis mounting. Evaluate the 5 A current rating against peak load requirements. Consider the 1.57 mm board thickness tolerance to ensure proper mechanical fit during assembly.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various row counts and mounting options for general-purpose electronic applications. It serves as a reliable interface solution for rigid PCBs requiring robust electrical connections in industrial environments.
Edgeboard Connectors Replacement Considerations
Cross-reference with EDAC 306-015-520-178 for single-row variants. Verify compatibility with EDAC 307 series headers if mating male pin configurations are preferred.
