306-015-500-108

Edgeboard Connectors Overview

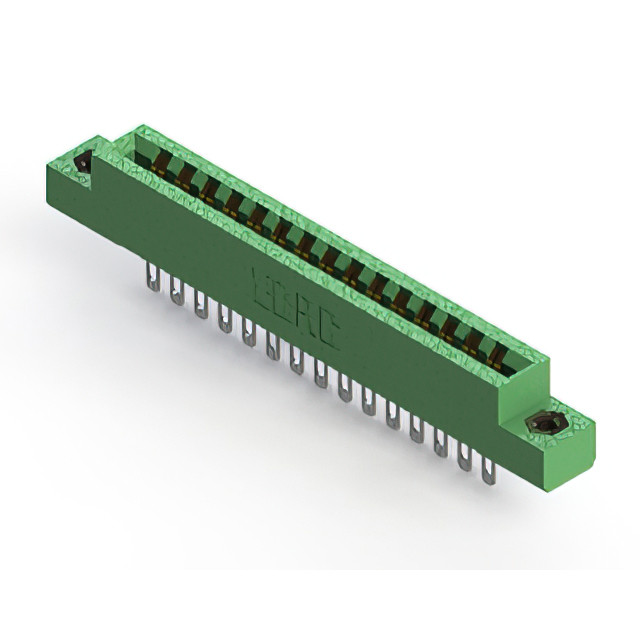

The EDAC Inc. model 306-015-500-108 is a standard card edge connector receptacle belonging to the 306 series. It features 15 positions with a contact spacing of 3.96 mm (0.156 inches). The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. Designed for through-hole mounting at a straight angle, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The unit supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts .062 inch (1.57mm) nominal thickness PCBs
• Low profile insulator body design
• Single centerline row configuration

Edgeboard Connectors Applications

• Medical interconnect solutions such as ventilators
• Ambulance communication systems
• CPAP machine interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix '108' against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the straight-through hole mounting style aligns with the mechanical constraints of the final assembly enclosure.

Edgeboard Connectors Selection Notes

Select this component when a single-row, low-profile card edge interface is required for medical or industrial applications. The 3.96 mm pitch accommodates standard board layouts while maintaining a compact form factor. Verify that the 5 A current rating meets the signal power requirements and that the operating temperature range covers the environmental conditions of the deployment site.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which provides robust interconnect solutions for computing, storage, and aerospace sectors. The series is characterized by high-quality manufacturing standards and rigorous inspection processes. EDAC has been a leader in card edge and rack-and-panel connectors since 1966, serving global OEMs with reliable logistics and quality assurance.

Edgeboard Connectors Replacement Considerations

Cross-reference the 306 series ordering guide for alternative position counts or mounting styles. Verify that any substitute maintains the 3.96 mm pitch and 1.57 mm board thickness acceptance to ensure mechanical fit.
