306-015-500-112

Edgeboard Connectors Overview

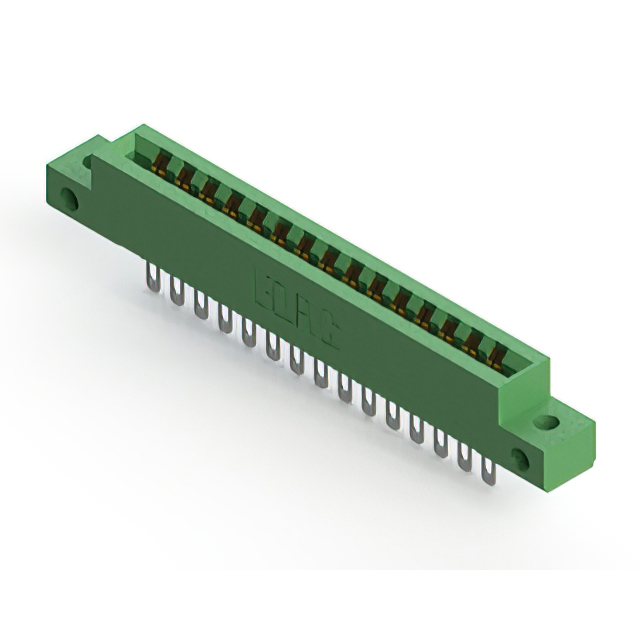

The EDAC Inc. 306-015-500-112 is a standard card edge connector receptacle designed for single-edge board insertion. It features 15 positions with a 3.96 mm (0.156 inch) pitch, accommodating PCBs up to 1.57 mm thick. The contacts are gold-plated copper alloy, rated for 5 A current. Constructed with a thermoplastic polyester housing in green, it utilizes through-hole solder termination and offers straight mounting orientation.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
• Thermoplastic polyester housing provides structural integrity and environmental protection.
• Through-hole solder termination facilitates secure mechanical attachment to the circuit board.

Edgeboard Connectors Applications

• Single-edge card edge interface connections
• Industrial control module interconnects
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating thickness and housing color variations. Ensure the selected variant matches the required PCB thickness tolerance of 1.57 mm. Cross-reference the pin count and pitch specifications with the target application design requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 15-position single-row connector is required for boards with a 3.96 mm pitch. Consider the 5 A current rating and through-hole mounting style for compatibility with existing assembly processes. Verify that the straight orientation fits within the available chassis space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series typically includes various position counts and pitch options, all sharing common mounting styles and material compositions. This specific model represents a mid-range configuration within the product line.

Edgeboard Connectors Replacement Considerations

Direct substitutes include EDAC 306-015-520-178 and 306-015-500-112 variants with different housing colors or plating specifications. Verify dimensional compatibility and electrical ratings before substitution.

Edgeboard Connectors FAQ

What is the maximum PCB thickness supported by this connector?

The connector supports printed circuit boards with a maximum thickness of 1.57 mm.

Is the connector compatible with double-sided boards?

This is a single-edge connector designed for insertion into one side of the board; it is not intended for double-sided edge mating.
