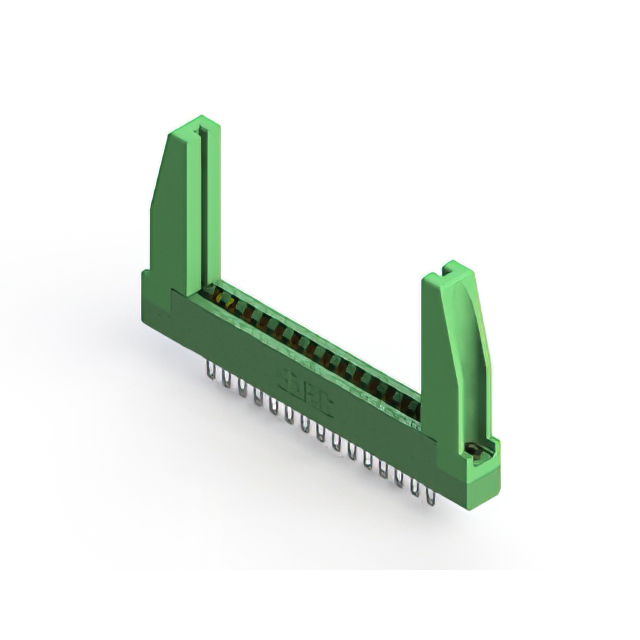

306-015-500-178

$10.67

Description：CONN EDGE DUAL FMALE 30POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:3579811282c2 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-015-500-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-015-500-178

Description：CONN EDGE DUAL FMALE 30POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：15
Number of Positions：30
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-015-500-178

306-015-500-178

Edgeboard Connectors Overview

The EDAC Inc. model 306-015-500-178 is a standard card edge connector receptacle belonging to the 306 series. It features 30 positions arranged in a dual configuration with a pitch of 0.156 inches (3.96 mm). The unit utilizes gold-plated copper alloy contacts and employs a solder termination type for secure electrical connections. Designed for panel mount installation, this component supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual female contact configuration for reliable signal transmission
Gold-plated copper alloy terminals ensure corrosion resistance
Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count and termination style. Ensure compatibility with target PCB thickness and mounting requirements before acquisition. Confirm RoHS compliance status through current manufacturer declarations.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. Consider the 30-position capacity and panel mount orientation for space-constrained applications. Validate that the 5 A current rating meets circuit demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306-015-500-178 specifically addresses needs for high-density dual-row connections in rugged environments.
