306-015-521-102

Edgeboard Connectors Overview

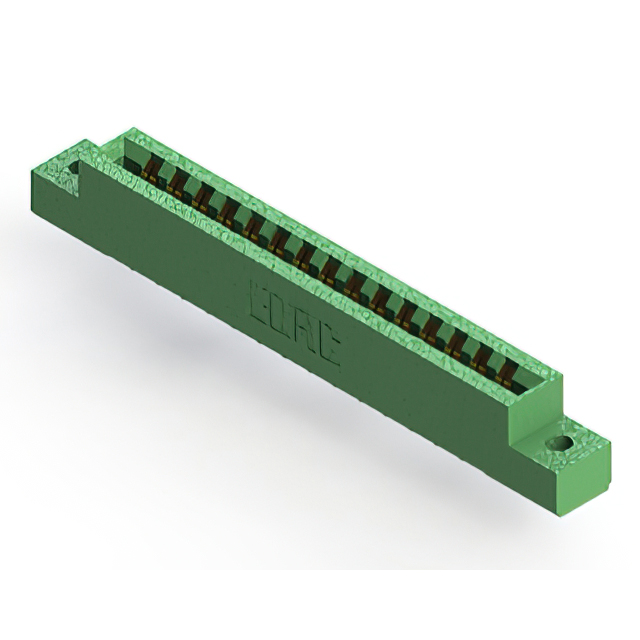

The EDAC Inc. 306-015-521-102 is a dual-edge female card edge connector designed for vertical panel mounting. It features 30 positions with a 0.156-inch (3.96 mm) pitch and utilizes copper alloy contacts with gold plating. The housing is constructed from green thermoplastic material, rated for operation between -40°C and +105°C. This component supports single-row configurations and is suitable for standard board thicknesses.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Dual-edge female contact configuration
• Gold-plated copper alloy contacts for conductivity
• Thermoplastic insulation housing

Edgeboard Connectors Applications

• Industrial control panels
• Telecommunications equipment
• Test and measurement instrumentation
• General-purpose electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against manufacturer documentation to confirm exact plating thickness and material variations. Ensure compatibility with target PCB edge card dimensions before procurement. Confirm RoHS compliance status through official datasheets as regulatory requirements may vary by region and production batch.

Edgeboard Connectors Selection Notes

Select this connector when a high-pitch 3.96 mm interface is required for panel-mounted applications. Consider the single-row layout and vertical orientation constraints during mechanical design. Evaluate thermal operating limits and current ratings against system load requirements prior to integration into the final assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of card edge connectors. The series offers various pin counts and pitch options tailored for different industrial and commercial interconnect needs. The 306 series is characterized by robust construction and reliable performance in demanding environments requiring durable electrical connections.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify mechanical footprint and electrical specifications match exactly when considering alternative part numbers from other manufacturers.
