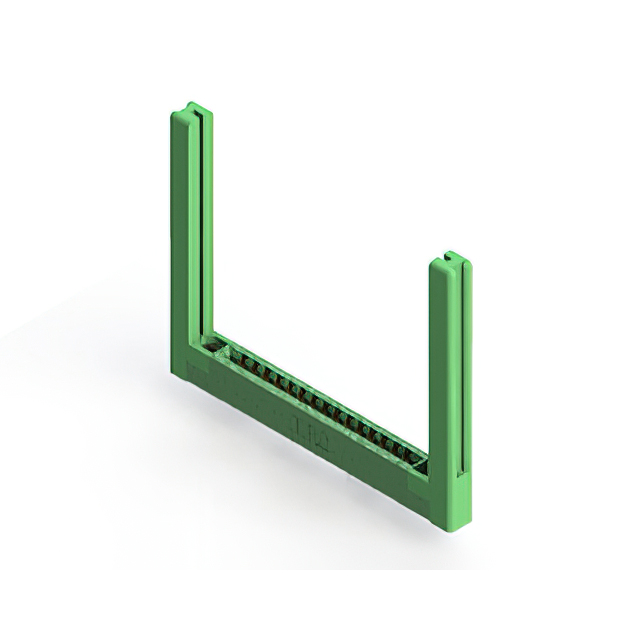

306-015-521-158 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-015-521-158
- Description：CONN EDGE DUAL FMALE 30POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-015-521-158
Edgeboard Connectors Overview
The EDAC Inc. 306-015-521-158 is a dual-edge female card edge connector from the 306 Series, featuring 15 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated cantilever contacts and a green thermoplastic polyester insulator. Designed for panel mount through-hole installation, it accepts PCBs with thicknesses ranging from 0.054 to 0.070 inches. The component operates within a temperature range of -40°C to 105°C and includes flange features for secure mounting.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration with cantilever spring contacts for reliable board insertion
- Gold-plated terminals ensure stable electrical performance in demanding environments
- Panel mount design with integrated flange for secure mechanical attachment
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnect solutions
- Medical equipment needing reliable signal transmission
- Communication infrastructure hardware
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, contact spacing, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status if required by project regulations. Cross-reference the manufacturer part number with distributor listings to validate current availability and lead times.
Edgeboard Connectors Selection Notes
Select this connector when a dual-edge interface with 0.156-inch spacing is required for panel-mounted applications. Ensure the target printed circuit board thickness falls within the specified operational range. Verify that the housing material and temperature ratings align with the environmental conditions of the intended deployment scenario.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and configurations tailored for diverse industrial and commercial applications. The 306 Series is known for its durability and consistent performance in high-reliability electronic assemblies.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 306 Series ordering guide for direct substitutes with differing pin counts or spacing. No alternative part numbers are confirmed as functional equivalents in available public documentation.
