306-015-521-178

Edgeboard Connectors Overview

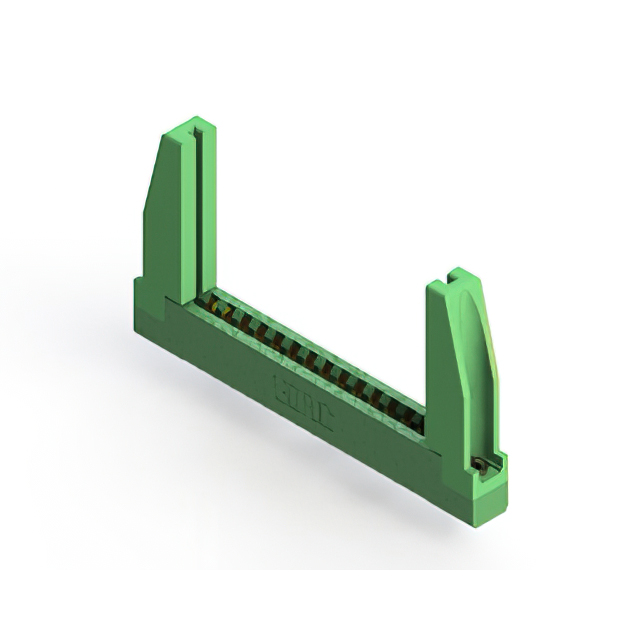

The EDAC 306-015-521-178 is a standard card edge connector receptacle featuring 15 positions with a 3.96 mm pitch. Designed for through-hole mounting at a straight angle, it utilizes gold-plated copper alloy contacts rated for 5 A current. The thermoplastic polyester housing accommodates PCBs with a thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Features a low-profile insulator body designed to accept nominal 1.57 mm thick printed circuit boards.
• Utilizes gold-plated copper alloy contacts with a 3.96 mm contact spacing for reliable signal transmission.

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment
• Medical devices

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct configuration. Confirm that the component meets RoHS compliance requirements and check for any recent product change notifications or availability updates prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 15-position dual-edge female connector is required. Ensure the design supports a 3.96 mm pitch and a board thickness of approximately 1.57 mm. Verify that the straight through-hole mounting style aligns with the mechanical constraints of the target assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which provides standard card edge connectors. The series offers various position counts and mounting styles, utilizing thermoplastic polyester housings and gold-plated contacts to support diverse electronic interconnection needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 306/316/356 Series Ordering Guide for verified substitute part numbers. Cross-reference specifications such as pitch, position count, and mounting style to ensure functional compatibility before considering alternative components.
