306-016-400-102

Edgeboard Connectors Overview

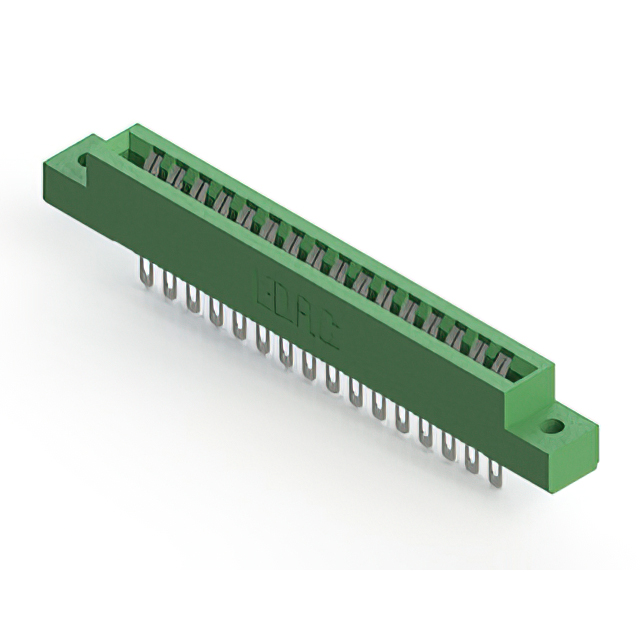

The EDAC Inc. model 306-016-400-102 is a standard card edge connector designed for dual female termination. It features a 16-position-per-row configuration, totaling 32 positions, with a contact spacing of 0.156 inches (3.96 mm). The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes tin-plated copper alloy contacts and a thermoplastic polyester insulator body. This low-profile header is intended for panel mount applications.

Edgeboard Connectors Feature Summary

• Dual female card edge design accommodating two rows of connections
• Low-profile insulator body constructed from thermoplastic polyester
• Tin-plated copper alloy contacts for reliable signal transmission

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring board-to-board connectivity
• Industrial control systems utilizing standard thickness PCBs
• Legacy equipment maintenance and replacement modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and row configuration. Ensure the target application supports the 0.156-inch pitch and 0.062-inch board thickness. Confirm that tin plating meets the environmental requirements, as gold options may be available in other variants within the series. Check manufacturer documentation for precise mounting hole dimensions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 32-position connection is required for 1.57 mm thick boards. The 3.96 mm pitch distinguishes it from finer-pitch alternatives. Consider the tin plating for cost-sensitive applications where high corrosion resistance is not critical. Verify that the vertical orientation fits the mechanical constraints of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and row configurations. The 306-016-400-102 specifically addresses the need for dual-row connectivity with a moderate pin count. It complements single-row variants by providing higher density in a standard footprint.

Edgeboard Connectors Replacement Considerations

Direct substitutes are limited due to specific pitch and plating variations. Review the 306-016-421-102 if gold plating is required instead of tin. Ensure any alternative maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility to fit existing panel cutouts.
