306-016-400-103

Edgeboard Connectors Overview

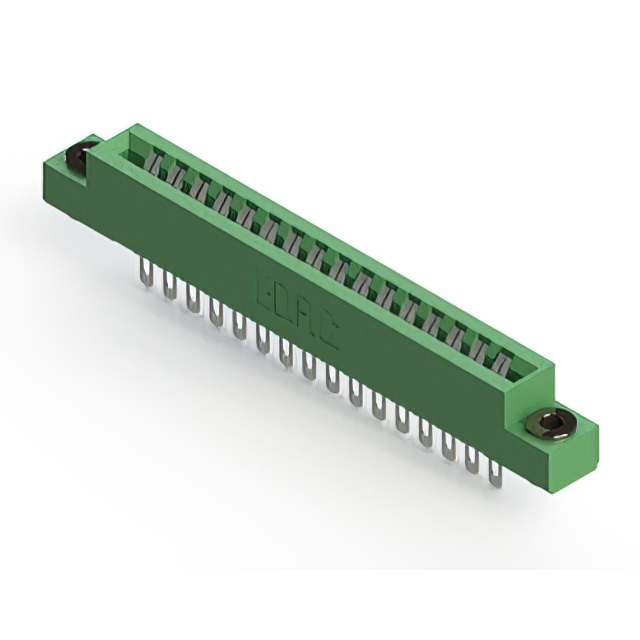

The EDAC Inc. model 306-016-400-103 is a dual female card edge connector featuring 32 positions with a 0.156-inch pitch. Designed for surface or panel mounting, it utilizes gold-plated contacts on copper alloy substrates to ensure reliable signal transmission. The component supports standard card edge interfaces and is engineered for robust mechanical stability in electronic assemblies requiring high-density interconnect solutions.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated terminals on copper alloy base for conductivity
• Standardized 0.156-inch pitch spacing for compatibility

Edgeboard Connectors Applications

• Electronic module interconnection systems
• Industrial control board assembly
• Communication equipment interface modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for the 306-016-400-103 to confirm exact mounting hole dimensions and plating thickness specifications. Ensure that the receiving PCB design aligns with the 0.156-inch pitch requirement. Cross-reference the manufacturer's latest documentation to validate compliance with current environmental directives before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is required for 32-position card edge applications. The 0.156-inch pitch dictates the necessary PCB trace spacing. Verify that the target application environment does not exceed the thermal limits of the thermoplastic insulator. Confirm that the mating card thickness matches the connector's design specifications for optimal contact retention.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options for general-purpose electronic connections. The 306 series is characterized by its use of thermoplastic insulation and gold-plated copper alloy contacts, offering a balance of performance and cost-effectiveness for standard industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 306-015-400-103 and 306-030-521-107, though these differ in position count or row configuration. Verify mechanical footprint compatibility before substitution. Alternative manufacturers may offer similar dual female connectors, but pin pitch and housing material must be strictly matched.
