306-016-400-104

Edgeboard Connectors Overview

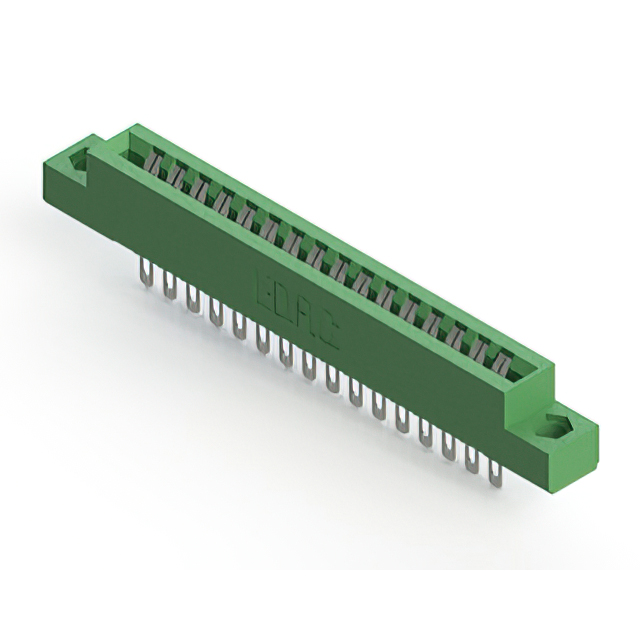

The EDAC Inc. 306-016-400-104 is a standard card edge connector receptacle designed for vertical panel mount applications. It features 32 positions with a 0.156 inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inch (1.57 mm). The connector utilizes gold-plated copper alloy contacts with solder pin termination. Constructed with a green thermoplastic polyester insulator, it supports dual female connections along a single centerline row.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Vertical panel mount design facilitates structured assembly
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronic module interfaces
• Medical device circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the receiving PCB meets the required 0.062 inch thickness specification. Confirm that the application environment does not exceed the thermal limits of the thermoplastic polyester material. Cross-reference the contact plating requirements with system reliability standards before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a 32-position vertical interface is required. The 0.156 inch pitch suits standard board layouts. Verify that the panel mounting style aligns with the mechanical enclosure design. Ensure the solder pin termination method matches the available manufacturing processes. Confirm that the dual edge contact arrangement fits the spatial constraints of the target assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306-016-400-104 specifically addresses high-density connection needs in compact spaces. It represents a standardized solution within the broader EDAC portfolio for reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not provided in the source data. Consult EDAC technical support for verified equivalents. Ensure any replacement maintains identical electrical ratings and mechanical dimensions.
