306-016-400-112

Edgeboard Connectors Overview

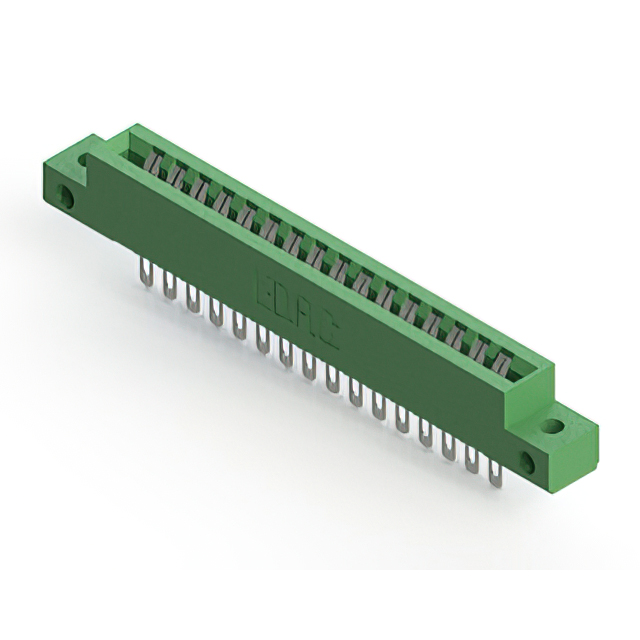

The EDAC Inc. part number 306-016-400-112 is a dual female edgeboard connector belonging to the 306 series. It features 32 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes copper alloy contacts and is designed for board edge mounting applications.

Edgeboard Connectors Feature Summary

• Dual female configuration for edgeboard connectivity
• Copper alloy contact material construction
• Standard 0.156 inch pitch dimensioning

Edgeboard Connectors Applications

• Edgeboard interconnection systems
• Industrial control modules
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific datasheet for the 306-016-400-112 model to confirm insulation material properties and termination style requirements. Ensure that the mating card thickness aligns with the connector's specified tolerance range before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual female edge connector with a 0.156-inch pitch is required. Consider the 306 series characteristics regarding mounting stability and contact durability for long-term industrial or commercial deployment scenarios.

Edgeboard Connectors Part Context

This component is part of EDAC's extensive portfolio of high-reliability connectors. The 306 series specifically targets applications requiring robust edgeboard connections with standardized dimensional profiles for consistent assembly across various electronic hardware platforms.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the same series or compatible alternative models that match the 32-position dual female specification.
