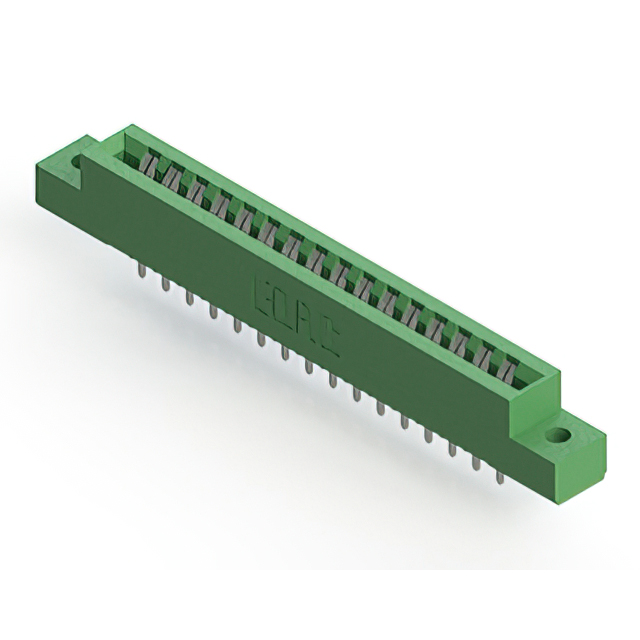

306-016-420-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-016-420-102
- Description：CONN EDGE DUAL FMALE 32POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-016-420-102
Edgeboard Connectors Overview
The EDAC Inc. 306-016-420-102 is a standard card edge connector designed for vertical panel mount applications. This receptacle features 32 positions with a 3.96 mm (0.156 inch) pitch, accommodating a board thickness of 1.57 mm. It utilizes gold-plated copper alloy contacts rated for 5 A current and employs solder pin termination. The housing is constructed from green thermoplastic polyester, ensuring reliable electrical performance in dual-edge card configurations.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure card insertion
- Gold-plated copper alloy contacts ensure low resistance and corrosion resistance
- Thermoplastic polyester housing provides durable insulation and structural stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm contact plating and housing color specifications. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the 3.96 mm pitch aligns with the design requirements. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement.
Edgeboard Connectors Selection Notes
Select this component when a vertical panel mount solution with 32 positions is required. The 3.96 mm pitch suits applications needing wider spacing between contacts. Verify that the 5 A current rating meets the circuit demands and that the dual-edge form factor matches the card design constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-016-420-102 specifically represents a 32-position variant within this standardized lineup, designed for general-purpose industrial connectivity.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for direct substitutes. Cross-reference pitch, position count, and mounting style when evaluating alternative components.
