306-016-420-104

$8.63

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:ada963efd88b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-016-420-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-016-420-104

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：16
Number of Positions：32
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-016-420-104

306-016-420-104

Edgeboard Connectors Overview

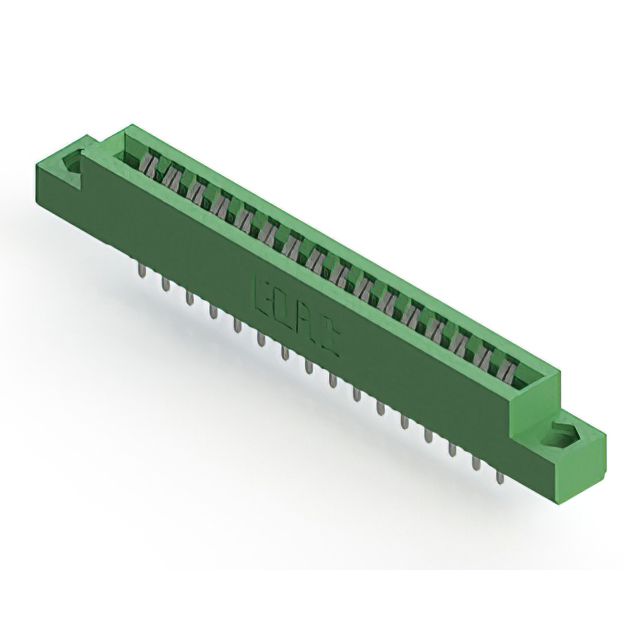

The EDAC Inc. 306-016-420-104 is a standard card edge connector receptacle featuring 32 positions arranged in a dual-edge configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing with cantilever contacts designed for female mating. The unit accepts printed circuit boards with a nominal thickness of 1.57 mm, accommodating a range from 1.37 mm to 1.78 mm. It employs a panel mount installation style at a vertical angle and uses tin-plated copper alloy contacts housed in a green thermoplastic polyester body.

Edgeboard Connectors Feature Summary

Dual-edge female connector design with cantilever contact type
Panel mount vertical installation with embedded flange features
Tin-plated copper alloy contacts for reliable signal transmission
Thermoplastic polyester insulator body providing structural stability

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronics module interfaces
Medical device circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact finish and housing color variations. Ensure the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range for proper mechanical engagement. Confirm that the panel mounting requirements align with the embedded flange specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface is required with a 3.96 mm pitch. The vertical panel mount style suits applications needing direct board insertion into chassis slots. Tin plating offers cost-effective conductivity for general-purpose environments where gold plating is not strictly mandated by corrosion requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting styles for diverse electronic assembly needs. The 306 series is characterized by its robust thermoplastic construction and standardized dimensions, facilitating widespread compatibility across different industrial and commercial hardware platforms.
