Edgeboard Connectors Overview

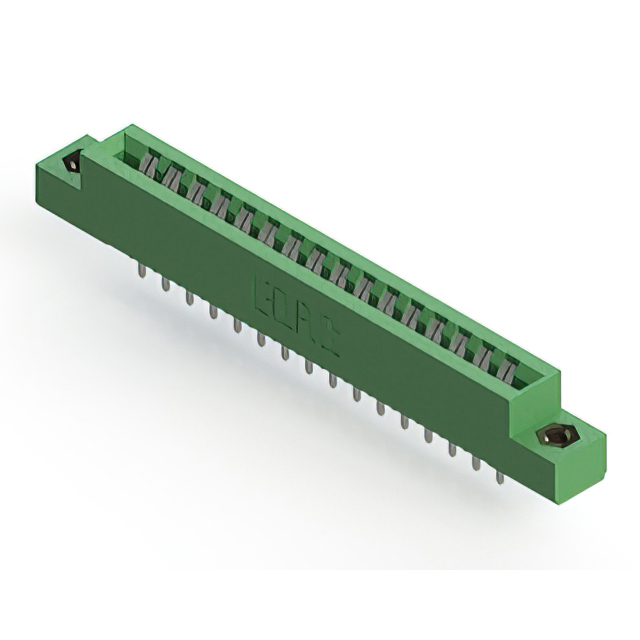

The EDAC Inc. 306-016-420-108 is a standard card edge connector receptacle designed for panel mount applications. It features a vertical orientation with a single row of contacts and utilizes a 3.96 mm pitch. The component accommodates a board thickness of 1.57 mm and provides 16 positions. Contacts are constructed from copper alloy with gold plating, ensuring reliable signal transmission. The housing is made of thermoplastic polyester, supporting an operating temperature range from -40°C to +105°C. The current rating is specified at 5 A, and the termination method employs solder pins for secure PCB attachment.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle design for stable mechanical integration
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester housing providing structural integrity and thermal stability
• Solder pin termination ensures secure electrical connection to the circuit board

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Electronic modules needing high-current single-row connectivity

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your system requirements. Ensure that the ordering suffix matches the desired contact configuration and material specifications. Cross-reference technical parameters such as pitch and board thickness with your PCB design files before procurement. Confirm RoHS compliance status through the latest datasheet provided by the manufacturer or authorized distributors.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row card edge connector is required for panel mounting. Consider the 3.96 mm pitch and 1.57 mm board thickness compatibility with your existing hardware. Evaluate the 5 A current rating and gold-plated contacts against your electrical performance needs. Verify the operating temperature range meets the environmental conditions of the intended application site.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic interconnection needs. The 306-016-420-108 variant specifically addresses applications requiring 16 positions with a 3.96 mm pitch. It represents a solution for reliable vertical connections in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the same series. Ensure any replacement maintains identical pitch, board thickness, and current rating specifications.
