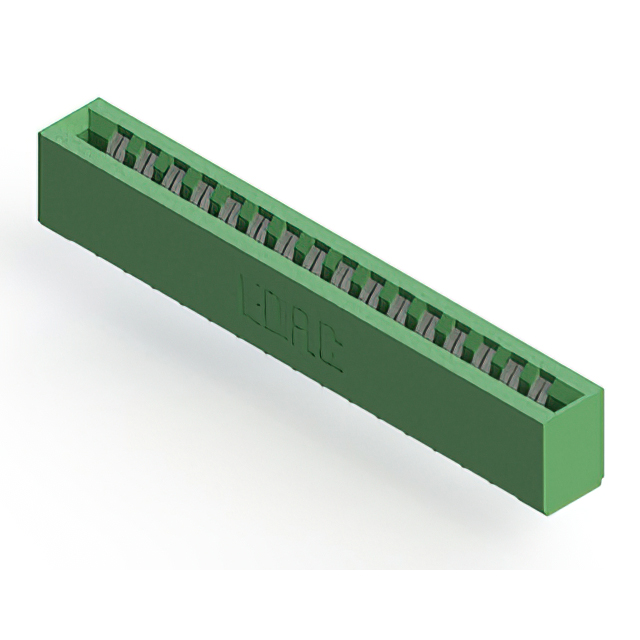

306-016-421-101

$8.63

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:c239758200fe Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-016-421-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-016-421-101

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：16
Number of Positions：32
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-016-421-101

306-016-421-101

Edgeboard Connectors Overview

The EDAC Inc. model 306-016-421-101 is a standard card edge connector from the 306 series, designed for panel mount installation with a vertical orientation. It features 32 positions arranged in a dual-edge female configuration with a 0.156-inch (3.96 mm) pitch. The contacts are made of copper alloy with a tin finish and utilize a cantilever type for reliable engagement. The housing is constructed from green thermoplastic polyester, supporting a PCB thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm).

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure board insertion
Cantilever contact type ensures stable electrical connection
Thermoplastic polyester insulation provides durability
Panel mount design with vertical orientation

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 32-position dual-edge specification. Confirm the tin contact finish aligns with soldering requirements. Ensure the panel mounting style and vertical angle fit the mechanical enclosure constraints. Check RoHS compliance status if environmental regulations apply to the final assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required. The cantilever contact type offers flexibility for varying board thicknesses within the specified range. The vertical panel mount style is suitable for applications where space efficiency and direct board access are priorities. Verify compatibility with the target PCB thickness before integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is known for providing reliable interconnection solutions for various electronic applications. The 306-016-421-101 variant specifically addresses needs for dual-edge connectivity with a fixed 32-position layout.
