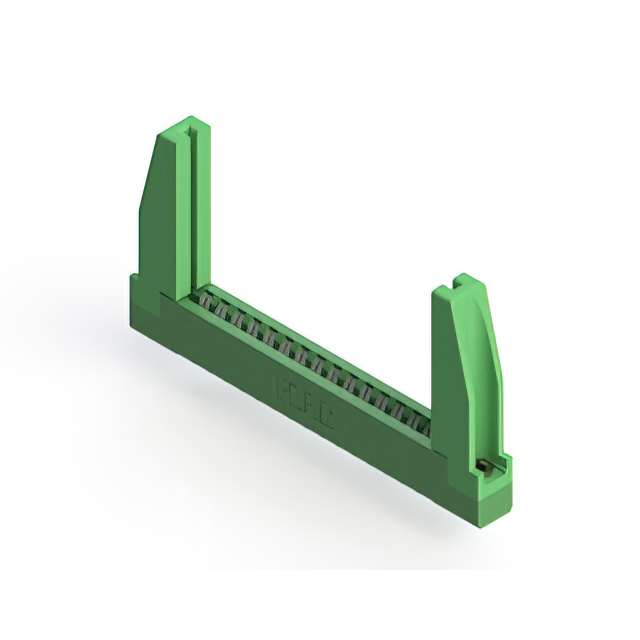

306-016-421-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-016-421-178
- Description：CONN EDGE DUAL FMALE 32POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-016-421-178
Edgeboard Connectors Overview
The EDAC Inc. 306-016-421-178 is a standard card edge connector receptacle from the 306 series. It features 15 positions with a 3.96 mm pitch and accepts a board thickness of 1.57 mm. Designed for through-hole straight mounting, it utilizes gold-plated copper alloy contacts rated for 5 A current. The housing is constructed from thermoplastic polyester.
Edgeboard Connectors Feature Summary
- Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
- Thermoplastic polyester insulator body provides structural stability and thermal endurance.
- Through-hole solder termination supports secure mechanical attachment to printed circuit boards.
Edgeboard Connectors Applications
- Industrial control systems requiring robust edge board connections
- Communication equipment interface modules
- Medical device internal circuit interconnections
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm contact plating, board thickness compatibility, and mounting style. Ensure the selected variant matches the required 15-position configuration and 3.96 mm pitch specifications for the target application design.
Edgeboard Connectors Selection Notes
Select this component when a single-row, low-profile card edge connector is required for 1.57 mm thick PCBs. Confirm that the 5 A current rating and through-hole installation method align with the system's electrical and mechanical constraints before finalizing the design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options, providing versatile solutions for connecting edgeboards to main circuitry in compact electronic assemblies across multiple industrial sectors.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 306 Series Ordering Guide for direct substitute part numbers. Verify identical pin count, pitch, and mounting characteristics when evaluating alternative components from the same manufacturer family.
