306-016-500-102

Edgeboard Connectors Overview

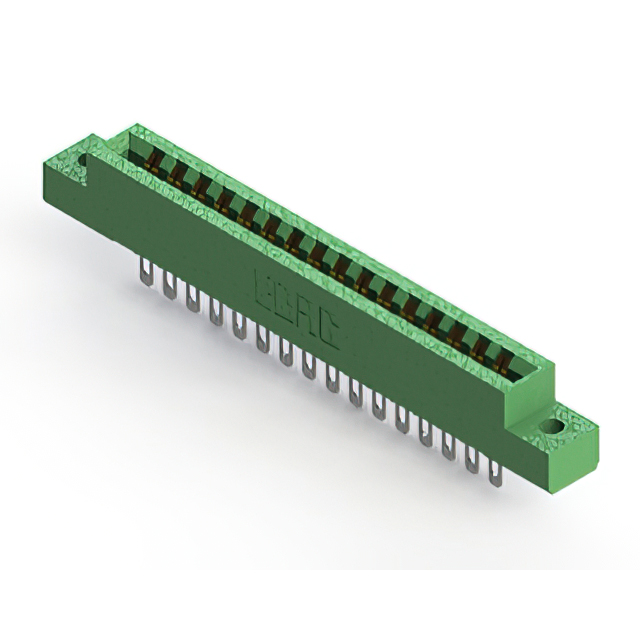

The EDAC Inc. 306-016-500-102 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 32 positions arranged in a single centerline row. The contact spacing is 0.156 inches (3.96 mm), and the unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The insulator body is low profile, contributing to compact system integration.

Edgeboard Connectors Feature Summary

• Dual female edgeboard connector design for secure board retention
• Single centerline row configuration with 0.156-inch contact spacing
• Gold-plated copper alloy contacts for corrosion resistance
• Low profile thermoplastic insulator body for space-constrained panels

Edgeboard Connectors Applications

• Panel-mounted electronic interconnects
• Industrial control system backplanes
• Communication equipment card interfaces
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count and termination style. Ensure the target PCB thickness falls within the specified acceptance range of 0.062 inches. Confirm that the panel mounting requirements align with the connector's mechanical footprint and screw hole specifications before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount interface is required for double-sided edge cards. The 32-position capacity suits moderate-density signal routing. Verify that the operating environment does not exceed the thermal limits of the thermoplastic housing. Ensure mating card edge conductors are compatible with the 0.156-inch pitch geometry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in high-reliability card edge connectors. The series is characterized by robust mechanical retention and consistent electrical performance. It serves as a critical interface between flexible or rigid circuit boards and stationary panel infrastructure in demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 306-033-520-102 for similar series characteristics but different position counts. Verify mechanical compatibility with existing panel cutouts and mating edgeboards before substitution.
