306-016-500-104

Edgeboard Connectors Overview

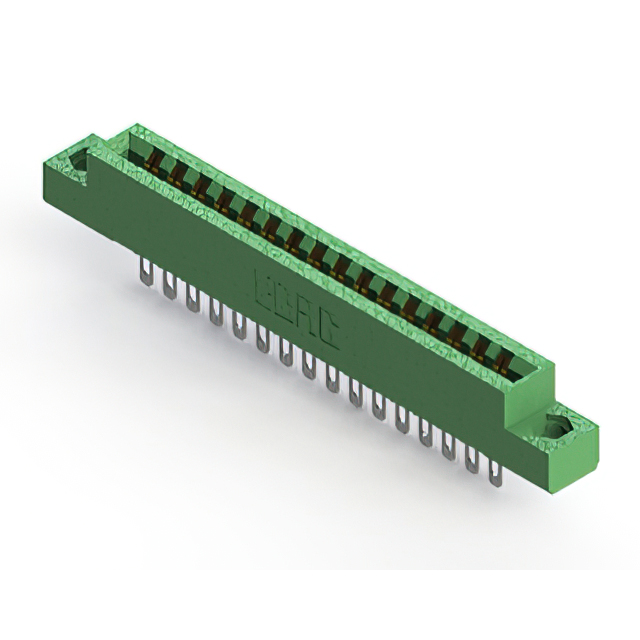

The EDAC Inc. 306-016-500-104 is a dual-edge female card edge connector from the 306 series, designed for high-reliability applications. It features 32 positions with a contact spacing of 0.156 inches (3.96 mm) and a single centerline row. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated on phosphor bronze substrates to ensure low contact resistance and durability. The insulator body is constructed from green thermoplastic polyester, providing robust mechanical support and electrical insulation.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contacts on phosphor bronze for reliable signal transmission
• Low-profile insulator body design for space-constrained assemblies
• Single centerline row arrangement simplifying routing

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment interface modules
• Automotive electronics subsystems
• Test and measurement instrumentation backplanes

Edgeboard Connectors Procurement Notes

Verify the specific part number suffix against official EDAC documentation to confirm plating thickness and material specifications. Ensure compatibility with target PCB thickness standards before procurement. Cross-reference manufacturer datasheets for environmental ratings and mating cycle limits to validate suitability for the intended operational environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 32 positions is required. The 0.156-inch pitch suits applications needing wider spacing for higher voltage isolation or easier assembly. Verify that the target PCB thickness aligns with the 0.062-inch nominal specification to ensure proper retention and contact engagement during mating cycles.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles. The 306-016-500-104 variant specifically addresses needs for dual-edge connectivity with gold-plated contacts, distinguishing it from single-edge or silver-plated alternatives within the broader product family.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 32-position count, 0.156-inch pitch, dual-edge female configuration, and compatible PCB thickness specifications exactly.
