306-016-500-107

Edgeboard Connectors Overview

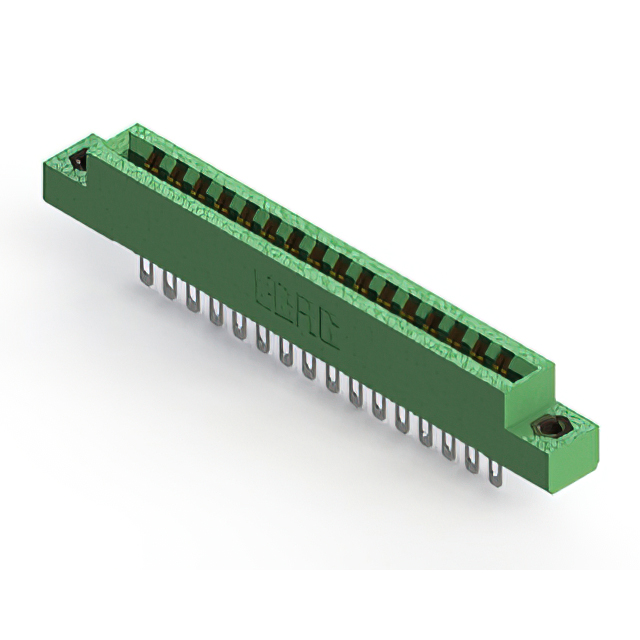

The EDAC Inc. 306-016-500-107 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features 16 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated phosphor bronze contacts housed in a green thermoplastic body, supporting a PCB thickness of 1.57 mm. Rated for 5 A current with an insulation resistance of 5 Gohms, it serves as a dual female receptacle for edgeboard connections.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Thermoplastic housing provides structural stability and insulation

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring vertical interconnects
• Industrial control systems utilizing edgeboard modules
• Test and measurement equipment interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 16-position count and 3.96 mm pitch before ordering. Confirm that the panel mounting style and vertical orientation align with the mechanical design constraints of the target enclosure. Ensure compatibility with the specified 1.57 mm PCB thickness to guarantee proper seating and electrical contact integrity during assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for vertical panel mounting. The 3.96 mm spacing accommodates standard edgeboard designs within the 306 series family. Consider the gold plating for corrosion resistance and the thermoplastic material for general-purpose industrial environments where moderate current ratings are sufficient.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which defines a line of card edge connectors characterized by 0.156-inch contact spacing. The series offers various position counts and mounting styles, with the 306-016-500-107 representing the 16-position variant. It is engineered for robust performance in standard industrial connectivity applications.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include EDAC part numbers such as 306-018-500-107 for 18 positions or 306-006-500-107 for 6 positions, provided the position count difference is acceptable for the design.
