306-016-500-108

Edgeboard Connectors Overview

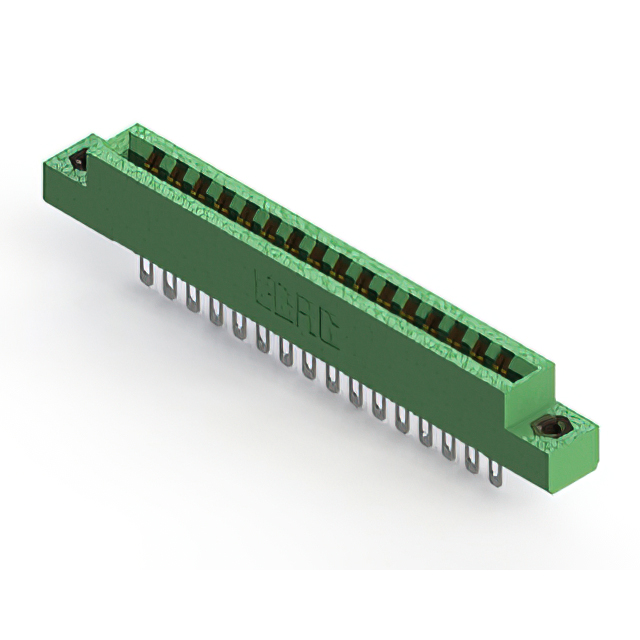

The EDAC Inc. model 306-016-500-108 is a dual female edgeboard connector designed for high-reliability applications. It features 32 positions with a contact pitch of 0.156 inches (3.96 mm). The unit utilizes gold-plated contacts and supports a board thickness of 0.031 inches. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. Constructed with thermoplastic insulation and copper alloy terminals, this component ensures stable electrical performance in demanding industrial environments.

Edgeboard Connectors Feature Summary

• Dual female configuration providing robust connection stability
• Gold-plated contacts ensure reliable signal transmission
• Thermoplastic housing offers durable insulation properties

Edgeboard Connectors Applications

• Industrial control systems requiring secure card-edge interfaces
• Communication equipment utilizing standard edgeboard modules
• Consumer electronics with high-density connection needs

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official distributor catalogs to confirm availability and authenticity. Check RoHS compliance details directly from the datasheet. Ensure that the ordering suffix matches the required termination style and mounting configuration. Confirm lead times with authorized suppliers as production cycles may vary based on regional distribution channels.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with 32 positions is required. Verify that the mating card thickness aligns with the specified 0.031-inch tolerance. Consider the 5 A current rating and operating temperature limits for thermal management. Ensure the panel or PCB mounting style matches the system design requirements before finalizing the selection.

Edgeboard Connectors Part Context

This connector belongs to the EDAC edgeboard series, known for standardized dimensions and high reliability. The 306 series typically features dual female contacts for secure mating. It serves as a critical interconnect solution in modular electronic designs where consistent electrical performance and mechanical durability are essential for long-term operation.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitute part numbers. Verify pin count, pitch, and mounting style compatibility before substitution. Cross-reference specifications with other manufacturers only if exact dimensional and electrical parameters match.
