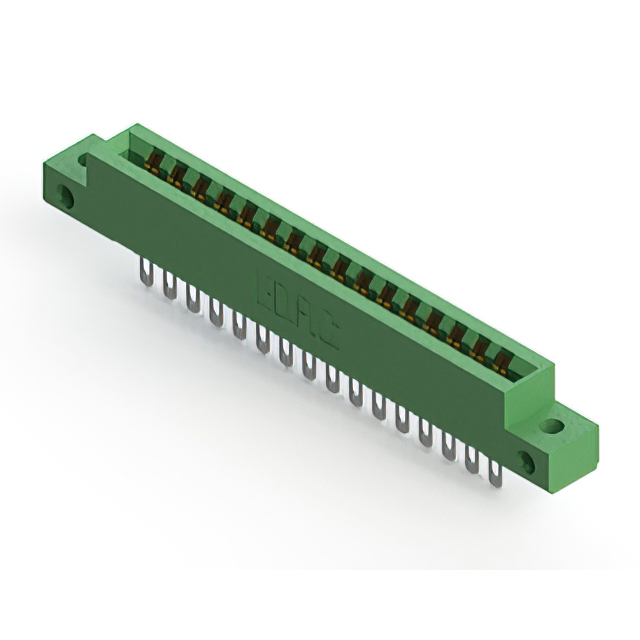

306-016-500-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-016-500-112
- Description：CONN EDGE DUAL FMALE 32POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-016-500-112
Edgeboard Connectors Overview
The EDAC Inc. 306-016-500-112 is a female edgeboard connector from the 306 series, designed for vertical through-hole mounting. It features 16 positions with a 0.156-inch (3.96mm) pitch and dual-edge contact configuration. The housing is green Diallyl Phthalate (DAP), while contacts are copper alloy with gold plating. Rated for 5A current, it operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Dual-edge contact design ensures reliable signal transmission for double-sided circuit boards.
- Vertical orientation facilitates standard panel or board integration.
- Gold-plated copper alloy contacts provide corrosion resistance and low contact impedance.
Edgeboard Connectors Applications
- Industrial control systems requiring robust card edge interfaces
- Telecommunications equipment backplanes
- Medical device internal module connections
Edgeboard Connectors Procurement Notes
Verify that the specific part number suffix matches the required contact finish thickness and housing material variant. Confirm that the dual-edge specification aligns with the target PCB design. Ensure the operating temperature range meets the environmental requirements of the final assembly application.
Edgeboard Connectors Selection Notes
Select this component when a vertical, through-hole edge connector with a 3.96mm pitch is required. The 16-position count suits moderate-density applications. Consider the DAP housing material for thermal stability and the 5A rating for power distribution needs within the specified temperature limits.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 306 series, which specializes in high-reliability edgeboard connectors. The series is characterized by its use of DAP insulation and gold-plated contacts, targeting demanding environments in industrial and communication sectors where long-term connection integrity is critical.
Edgeboard Connectors Replacement Considerations
Direct substitutes must match the 16-position count, 0.156-inch pitch, and dual-edge termination style. Verify compatibility with existing panel cutouts and PCB footprints before replacing with alternative manufacturers' components.
Edgeboard Connectors FAQ
What is the contact material composition?
The contacts are made of copper alloy with a gold plating finish.
Is this connector suitable for single-sided PCBs?
No, this is a dual-edge connector designed specifically for double-sided circuit boards.
