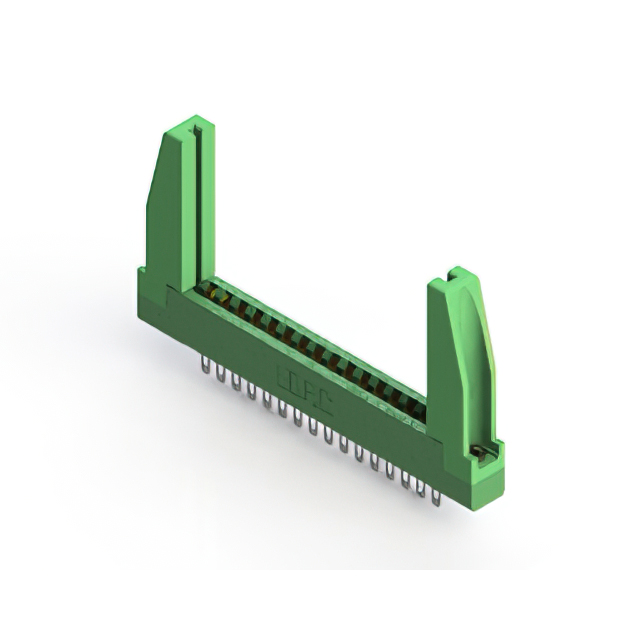

306-016-500-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-016-500-178
- Description：CONN EDGE DUAL FMALE 32POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-016-500-178
Edgeboard Connectors Overview
The EDAC Inc. 306-016-500-178 is a standard card edge connector receptacle featuring 32 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and supports a 5 A current rating. Designed for panel mount installation, this single-row component accommodates a board thickness of 1.57 mm. The housing is constructed from thermoplastic polyester, ensuring reliable performance within an operating temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Gold-plated copper alloy contacts ensure stable electrical conductivity
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with target PCB edge thickness specifications before procurement. Cross-reference manufacturer part numbers directly to avoid substitution errors in critical assemblies.
Edgeboard Connectors Selection Notes
Select this model when a 32-position interface with a 3.96 mm pitch is required. Confirm that the application environment remains within the specified temperature limits. Verify that the panel mount orientation aligns with the mechanical design constraints of the host enclosure.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. This specific part number represents a dual-edge female receptacle designed for robust industrial connectivity applications requiring high reliability.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise 3.96 mm pitch or gold plating specifications required for signal integrity.
