306-016-521-102

Edgeboard Connectors Overview

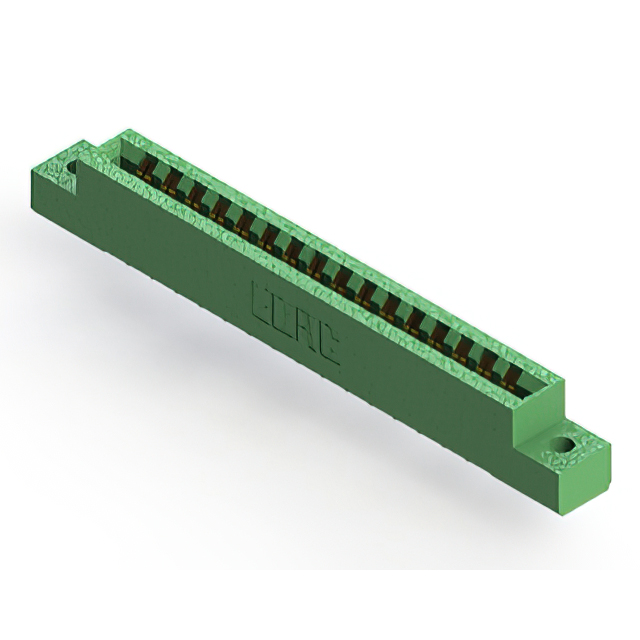

The EDAC Inc. 306-016-521-102 is a standard card edge connector receptacle designed for dual-edge board insertion. It features 32 positions with a 0.156-inch (3.96mm) contact spacing arranged in a single centerline row. The contacts are gold-plated copper alloy cantilever types, suitable for reliable signal transmission. This component supports printed circuit boards with nominal thicknesses of 0.062 inches (1.57mm). It utilizes a low-profile insulator body and is intended for panel mount installation.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating non-specified board edges
• Gold-plated copper alloy cantilever contacts for enhanced conductivity
• Low-profile insulator body constructed from green thermoplastic polyester
• Panel mount configuration with flange features for secure installation

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control panel assemblies
• Telecommunications equipment backplanes
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thickness and termination style. Confirm that the selected variant matches the necessary environmental ratings for the intended operating conditions. Cross-reference the manufacturer's latest datasheet to validate current availability and compliance status before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 32 positions and 3.96mm spacing is required. Ensure the target PCB thickness aligns with the 1.57mm nominal specification. Consider the gold plating for corrosion resistance and the cantilever contact type for ease of insertion. Verify that the panel mount style fits the mechanical constraints of the enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors, which offers various configurations for different board thicknesses and contact arrangements. The series provides options for single and double rows, supporting diverse interconnect needs in compact electronic designs. The 306-016-521-102 specifically addresses applications requiring dual-edge connectivity with robust contact performance.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 306/316/356 Series Ordering Guide for verified substitute part numbers. Ensure any replacement maintains identical position count, spacing, and mounting characteristics. Verify that alternative components meet the same electrical and mechanical specifications for seamless integration.
