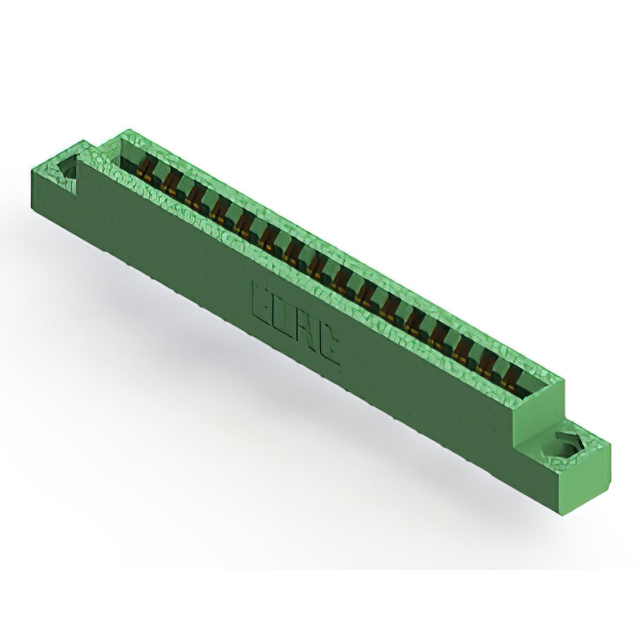

306-016-521-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-016-521-104
- Description：CONN EDGE DUAL FMALE 32POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-016-521-104
Edgeboard Connectors Overview
The EDAC 306-016-521-104 is a card edge connector featuring 32 positions in a single row. It utilizes female contacts with gold plating and a 0.156-inch (3.96mm) pitch. Designed for through-hole vertical mounting, it accepts dual-edge non-specified cards with thicknesses ranging from 0.054 to 0.070 inches. The green insulator body ensures reliable signal transmission in standard electronic assemblies.
Edgeboard Connectors Feature Summary
- Single centerline row configuration for compact board integration
- Gold-plated female contacts ensure durable electrical connectivity
- Vertical through-hole termination style for secure PCB mounting
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Consumer electronics module connections
Edgeboard Connectors Procurement Notes
Verify the specific contact count and pitch against the official datasheet before procurement. Confirm that the target printed circuit board thickness falls within the specified acceptance range of 0.054 to 0.070 inches. Ensure the mounting orientation matches the vertical through-hole requirement for proper mechanical fit.
Edgeboard Connectors Selection Notes
Select this component when a single-row female connection is required for dual-edge cards. The 0.156-inch pitch accommodates standard board widths. Verify compatibility with the intended operating temperature range and current requirements. Consider the green insulator color for visual identification during assembly processes.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of card edge connectors. The series offers various position counts and configurations. It is designed for general-purpose electronic applications requiring robust mechanical retention and stable electrical performance. The product line supports diverse industry standards for reliability.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for direct substitutes within the 306 series. Verify pin count, pitch, and mounting style compatibility before considering alternative manufacturers.
