306-016-521-112

Edgeboard Connectors Overview

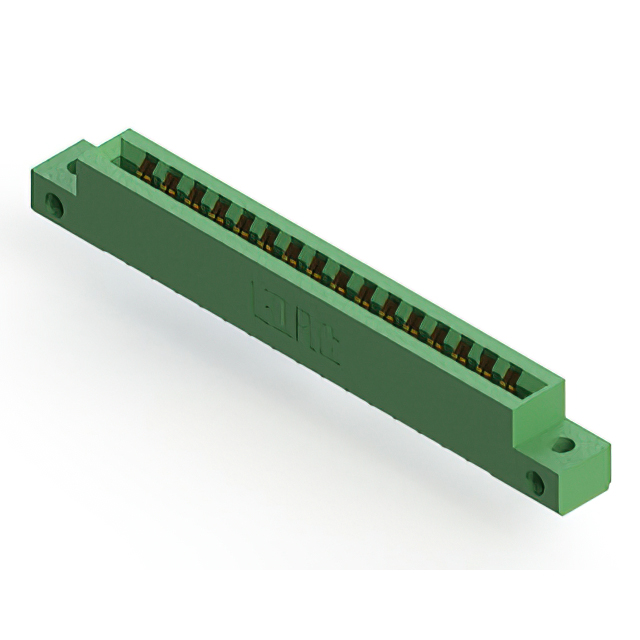

The EDAC Inc. 306-016-521-112 is a card edge connector from the 306 series, designed for through-hole mounting with wire wrap termination. It features a dual female configuration with 16 positions arranged in a single centerline row. The contact spacing is 0.156 inches (3.96 mm), and it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are plated with gold to ensure reliable conductivity. The insulator body is constructed from thermoplastic polyester, providing durability and electrical insulation. This component operates within a temperature range of -40°C to +105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single centerline row design for compact board integration
• Gold-plated phosphor bronze contacts for corrosion resistance
• Low-profile insulator body for space-constrained applications
• Through-hole installation with wire wrap termination

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Consumer electronics internal module connections
• Medical device circuit board assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix matches the required pin count and termination style. Confirm that the board thickness specification aligns with your PCB design constraints. Check for RoHS3 compliance requirements if operating in regulated regions. Ensure the supplier provides official datasheets for dimensional verification before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, low-profile interface is required for 0.062-inch thick boards. The 0.156-inch spacing offers a balance between density and manufacturability. Consider the wire wrap termination method for prototyping or low-volume production. Evaluate the thermal rating against the operational environment of the target application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series is characterized by its versatility in various industrial and commercial applications. The 306 series typically offers multiple position counts and termination options to suit different board architectures and connectivity needs.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
