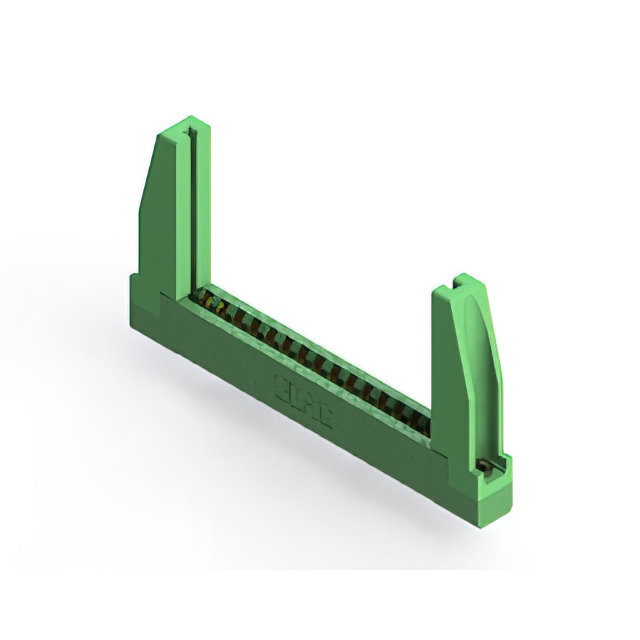

306-016-521-178

$11.05

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:cdfc55c6f620 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-016-521-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-016-521-178

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：16
Number of Positions：32
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-016-521-178

306-016-521-178

Edgeboard Connectors Overview

The EDAC Inc. 306-016-521-178 is a standard card edge connector from the 306 series, designed for through-hole mounting. It features 32 positions with a 0.156-inch (3.96 mm) pitch and dual-edge configuration. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports board thicknesses of 0.054 to 0.070 inches (1.37 to 1.78 mm) and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure board insertion
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester housing provides structural stability
Through-hole solder termination for robust PCB attachment

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronics module interfaces
Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and pitch specifications. Ensure compatibility with target PCB board thickness limits. Check RoHS compliance status if required by project regulations. Confirm availability through authorized distributors as stock levels vary.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch dual-edge connector is required. Consider the 32-position count for I/O requirements. Verify that the through-hole mounting style aligns with the assembly process. Ensure the operating temperature range meets environmental demands.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and mounting options. The 306-016-521-178 variant specifically addresses applications needing dual-edge connectivity with a 3.96 mm spacing.
