306-017-420-102

Edgeboard Connectors Overview

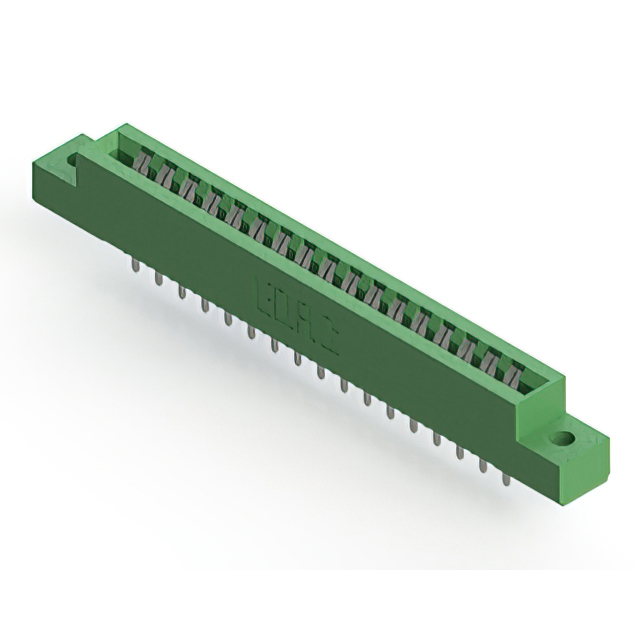

The EDAC 306-017-420-102 is a standard card edge connector receptacle designed for panel mount applications. It features a dual female configuration with 34 positions and a pitch of 3.96 mm (0.156 inches). The component supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts. It employs a solder pin termination method and operates within a vertical orientation.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts for reliable conductivity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with system requirements. Confirm that the dual female receptacle type matches the intended card edge design. Check current product status and availability through authorized distributors, as supply conditions may vary. Ensure the selected variant meets all environmental and electrical specifications required for the target application.

Edgeboard Connectors Selection Notes

Select this component when a 34-position dual female connector is required for panel-mounted assemblies. Verify that the 3.96 mm pitch aligns with the printed circuit board layout. Ensure the 1.57 mm board thickness specification is compatible with the mating card edge. Confirm that the vertical mounting angle suits the enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic interconnection needs. The 306-017-420-102 specifically provides a high-density solution with 34 positions in a dual female format.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 306 series or other compatible families. Ensure any replacement maintains identical pitch, position count, and mounting characteristics.
