306-017-420-104

Edgeboard Connectors Overview

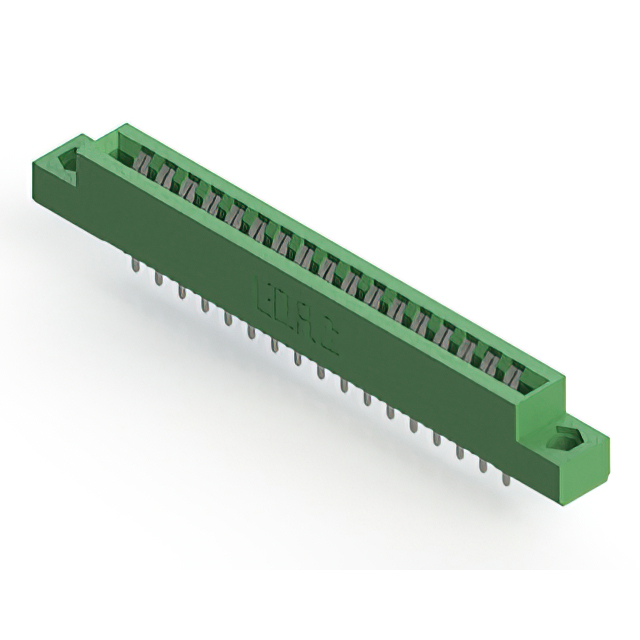

The EDAC Inc. 306-017-420-104 is a standard card edge connector receptacle designed for panel mount applications. It features a dual female configuration with 34 positions arranged in two rows, providing a total of 34 contact points. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Electrical specifications include a current rating of 5 A per contact. The housing is constructed from thermoplastic polyester, and the contacts are made of copper alloy with gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulator body for durability
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit board integration
• Energy management system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, contact plating, and board thickness compatibility. Ensure the selected variant matches the required panel cutout dimensions and mounting hardware specifications. Cross-reference the RoHS status and environmental ratings with project requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. Confirm that the target PCB thickness aligns with the 1.57 mm nominal specification. Evaluate the 5 A current rating against the application's electrical load. Consider the vertical panel mount style for space-constrained enclosures where direct board-to-board connection is not feasible.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, a line of standard card edge connectors known for high design flexibility. The series offers various position counts and configurations to suit diverse interconnect needs. The 306-017-420-104 specifically addresses applications needing a 34-position dual female interface with gold-plated contacts for enhanced reliability in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for compatible substitutes. Verify identical pitch, row count, and board thickness tolerance. Check if alternative suffixes offer different contact materials or housing colors without altering functional dimensions.
