306-017-420-112

Edgeboard Connectors Overview

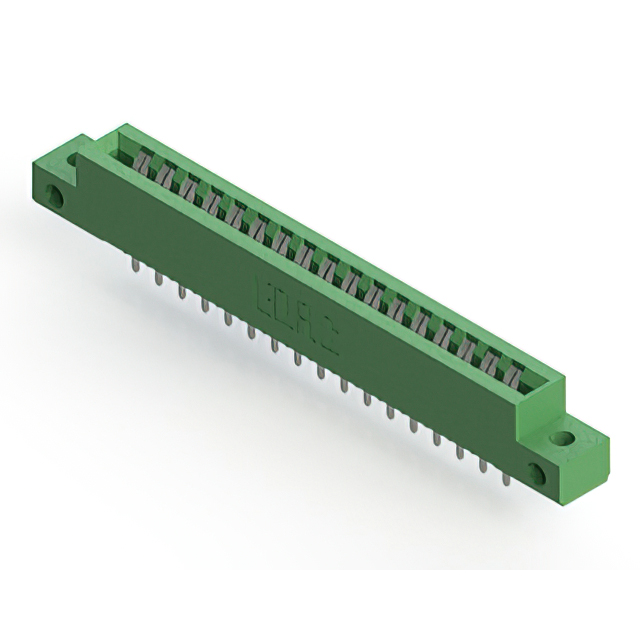

The EDAC Inc. model 306-017-420-112 is a standard card edge connector receptacle featuring 34 positions with dual female contacts. It utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component employs cantilever contact types made from copper alloy, finished with tin plating. Designed for panel mount installation via through-hole solder termination, the unit operates within a temperature range of -40°C to 105°C and features a green thermoplastic polyester insulator body.

Edgeboard Connectors Feature Summary

• Accepts single centerline row PCBs with nominal 0.062 inch thickness
• Features low profile insulator body construction
• Utilizes cantilever contact type for reliable connection

Edgeboard Connectors Applications

• Industrial control systems requiring panel-mounted interconnects
• Communication equipment backplanes
• Consumer electronic device interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status matches project requirements. Cross-reference manufacturer part numbers with distributor listings to validate authenticity and current production status.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution is required for dual-edge card applications. Verify that the 34-position capacity aligns with signal routing needs. Ensure the through-hole solder termination method matches the assembly process capabilities. Confirm that the operating temperature range satisfies environmental conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of card edge connectors. The series provides standardized interconnect solutions for various industrial and commercial applications. The 306 series is characterized by robust mechanical design and consistent electrical performance across multiple position counts.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Do not assume cross-compatibility with generic card edge connectors without verifying dimensional and electrical parameters.
