306-017-421-101

Edgeboard Connectors Overview

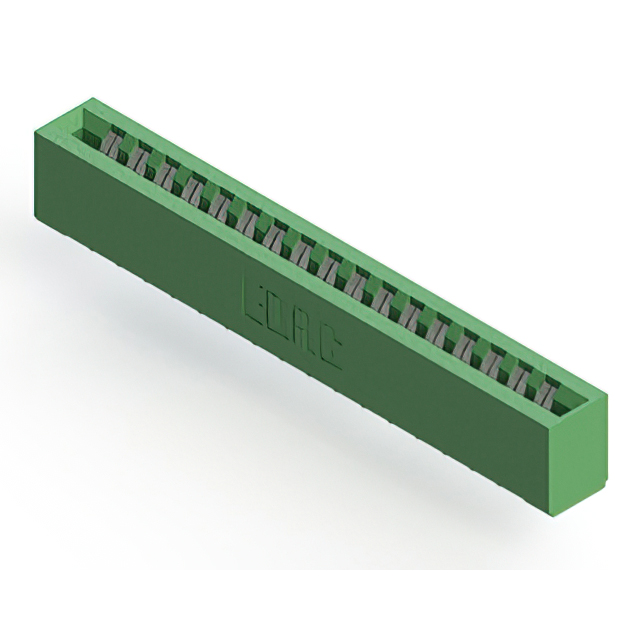

The EDAC Inc. 306-017-421-101 is a standard card edge connector receptacle designed for dual-edge board applications. It features 34 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for 5 A current, it supports panel mount installation at a vertical angle. The unit accommodates board thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Vertical panel mount design with flush mounting flange
• Thermoplastic polyester housing for structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and insulation color specifications. Ensure that the selected variant matches the required board thickness tolerance and mounting style for the target assembly. Cross-reference the RoHS compliance status with the latest regulatory documentation prior to final procurement authorization.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for high-reliability industrial environments. The 3.96 mm pitch allows for robust signal routing in space-constrained panels. Verify that the operating temperature range meets the environmental conditions of the deployment site. Confirm that the panel cutout dimensions align with the connector's flange specifications for proper mechanical retention.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options for diverse electronic applications. The 306-017-421-101 specifically addresses dual-edge requirements with a 34-position capacity. It serves as a reliable interface solution for connecting edgeboards to main systems in demanding operational settings.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or plating options. No alternative part numbers are confirmed as functional equivalents in public documentation.
