306-017-500-112

Edgeboard Connectors Overview

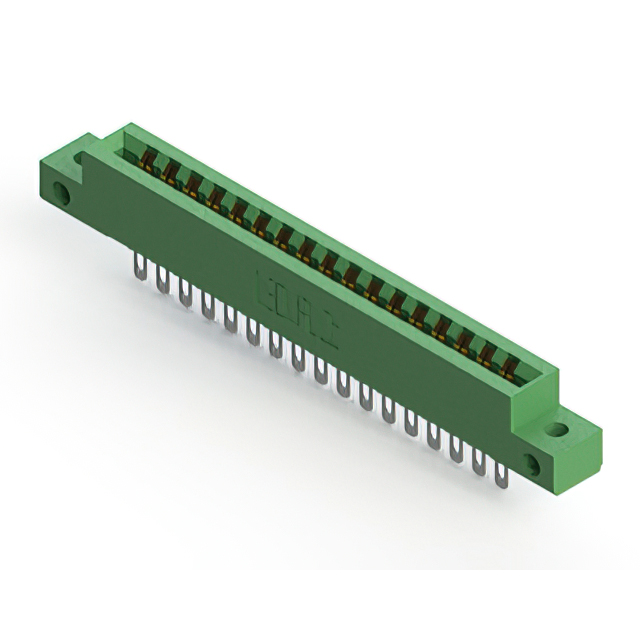

The EDAC Inc. 306-017-500-112 is a dual female card edge connector from the 306 series, designed for panel mount installation. It features 34 positions arranged in two rows with a 0.156-inch (3.96mm) pitch. The contacts are gold-plated copper alloy cantilever springs, ensuring reliable signal transmission. The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C. It accepts board thicknesses of 0.054 to 0.070 inches and utilizes solder lug termination.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated cantilever spring contacts for durability
• Thermoplastic polyester insulation for thermal stability
• Panel mount design with top-opening flange

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device circuit board connections
• Consumer electronics modular assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to ensure correct pin count, plating thickness, and flange style. Confirm that the target PCB thickness falls within the specified 0.054 to 0.070 inch range. Check RoHS compliance status if required by project specifications. Ensure storage conditions maintain component integrity prior to assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-row connection is required with a 0.156-inch spacing. Consider the cantilever contact type for ease of insertion and removal during maintenance. Evaluate the operating temperature range against environmental conditions. Compare physical dimensions and mounting hole patterns with existing chassis designs to ensure mechanical compatibility.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various configurations for different row counts and pitches. The 306 series is widely used in applications requiring robust, repeatable connections for printed circuit boards in industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series cross-reference documentation for direct substitutes. Verify that alternative parts match the 34-position count, dual-row layout, and 0.156-inch pitch. Ensure mechanical fit and electrical ratings are equivalent before substitution.
