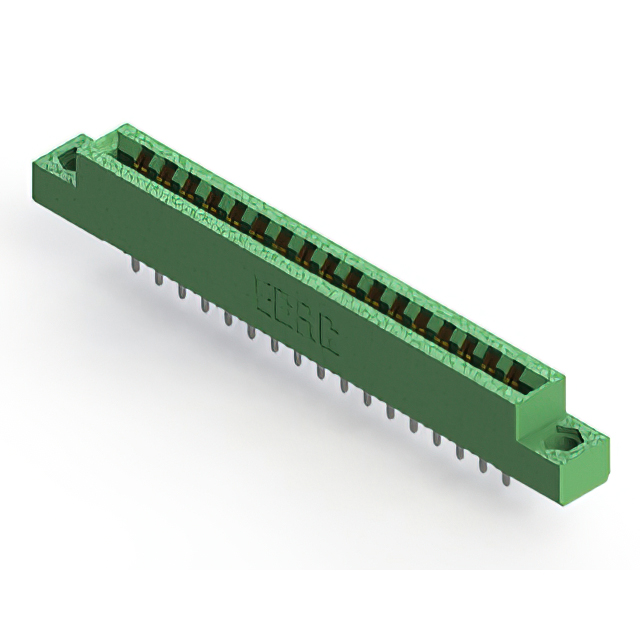

306-017-520-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 34POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-017-520-104
- Description：CONN EDGE DUAL FMALE 34POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：17
- Number of Positions：34
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-017-520-104
Edgeboard Connectors Overview
The EDAC Inc. model 306-017-520-104 is a standard card edge connector receptacle from the 306 series. It features 15 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The component utilizes through-hole mounting with a straight installation angle and gold-plated copper alloy contacts rated for 5 A current. The housing is constructed from thermoplastic polyester.
Edgeboard Connectors Feature Summary
- Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
- Thermoplastic polyester housing provides structural integrity and thermal stability.
- Straight through-hole design facilitates secure PCB integration.
Edgeboard Connectors Applications
- Industrial control systems requiring robust card edge interfaces
- Communication equipment utilizing standard board thicknesses
- Consumer electronics with high-current connection needs
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm position count, contact plating, and housing color. Ensure compatibility with the target PCB board thickness of 1.57 mm. Confirm that the straight through-hole mounting style aligns with the assembly requirements. Check RoHS compliance status if required by the end product specifications.
Edgeboard Connectors Selection Notes
Select this component when a 15-position single-row connector is needed with a 3.96 mm pitch. It is suitable for applications requiring a 5 A current rating and gold-plated contacts. Consider the straight mounting orientation and thermoplastic polyester housing material for environmental suitability.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306 series is designed for general-purpose electronic applications requiring reliable interconnection between circuit boards and connectors.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and mechanical dimensions before considering alternative components from other manufacturers.
