306-017-520-108

$10.81

Description：CONN EDGE DUAL FMALE 34POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:09ca1a81ef79 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-017-520-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 34POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-017-520-108

Description：CONN EDGE DUAL FMALE 34POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：17
Number of Positions：34
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-017-520-108

306-017-520-108

Edgeboard Connectors Overview

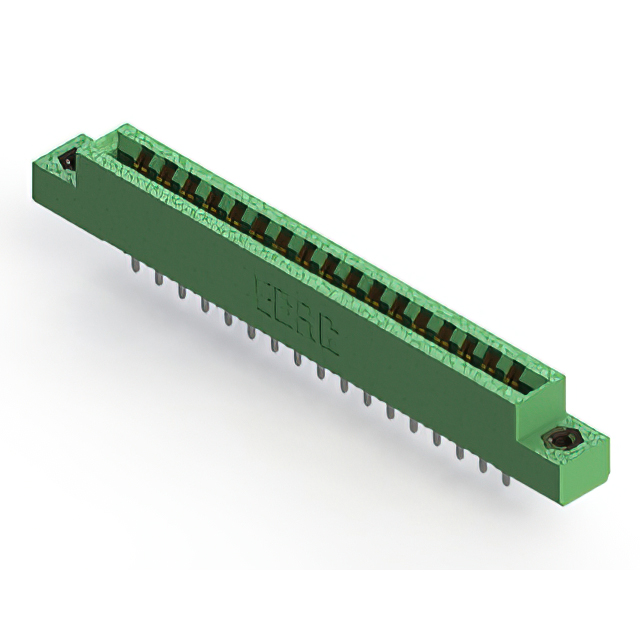

The EDAC Inc. 306-017-520-108 is a standard card edge connector receptacle featuring 34 positions with dual female contacts. It utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component employs through-hole termination for solder mounting in a straight orientation. Contacts are gold-plated copper alloy, rated for 5 A current, housed in green thermoplastic polyester.

Edgeboard Connectors Feature Summary

Dual edge female contact configuration for secure board insertion
Low profile insulator body design for compact assembly
Gold-plated contacts ensure reliable signal transmission
Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronics module integration
Medical device circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulation color. Ensure the selected variant matches the required PCB thickness tolerance of 0.062 inches. Confirm that the through-hole pin layout aligns with the target footprint. Check RoHS compliance status if restricted substances are prohibited in the final assembly. Validate the current rating against the application load requirements before procurement.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface is required for 34-position signals. The 0.156-inch pitch dictates the trace width and spacing on the mating card. Consider the straight mounting angle for vertical board-to-board or board-to-panel interfaces. The gold plating is suitable for general-purpose applications requiring corrosion resistance. Evaluate the thermal properties of the polyester housing for operating temperature ranges.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination styles. The 306 series is designed for high-reliability connections in demanding environments. EDAC manufactures these connectors to meet strict dimensional and electrical standards for industrial and commercial applications.
