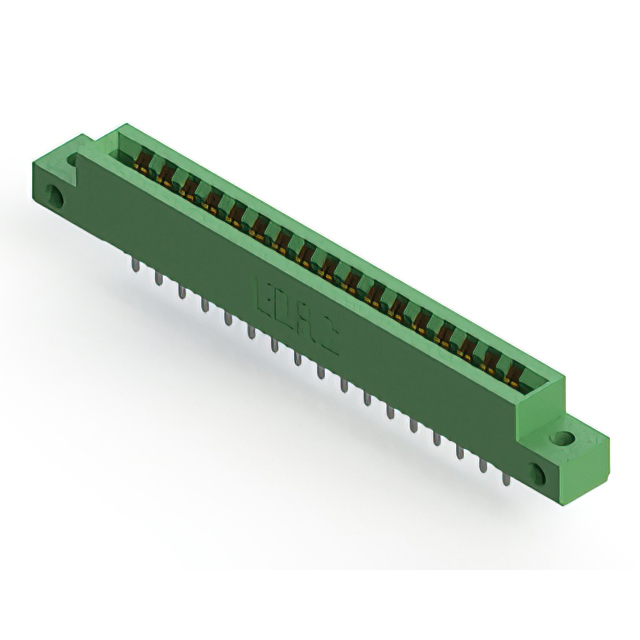

306-017-520-112

$10.14

Description：CONN EDGE DUAL FMALE 34POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:21e4b2eb422b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-017-520-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 34POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-017-520-112

Description：CONN EDGE DUAL FMALE 34POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：17
Number of Positions：34
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-017-520-112

306-017-520-112

Edgeboard Connectors Overview

The EDAC Inc. 306-017-520-112 is a standard card edge connector receptacle from the 306 series. It features 15 positions with a 3.96 mm (0.156 inch) pitch and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component utilizes gold-plated copper alloy contacts for reliable signal transmission and is rated for 5 A current. Designed for through-hole mounting at a straight angle, it employs a thermoplastic polyester housing.

Edgeboard Connectors Feature Summary

Accepts .062" (1.57mm) nominal thickness P.C. Board
Low profile insulator body design
Gold contact plating for durability

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific position count against official datasheets, as conflicting data exists between 15 and 17 positions in available sources. Confirm that the suffix '112' corresponds to the green insulator color and bulk packaging format. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement to prevent mechanical fit issues.

Edgeboard Connectors Selection Notes

Select this component when a single central row connector with a 3.96 mm pitch is required. The straight through-hole termination suits vertical board connections. Verify the 5 A current rating meets system requirements. Consider the low-profile body if space constraints exist within the assembly enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which provides standard card edge connectors. The series offers various position counts and mounting styles. The 306-017-520-112 specifically addresses applications requiring robust through-hole connections with gold-plated contacts for high reliability in standard industrial environments.
